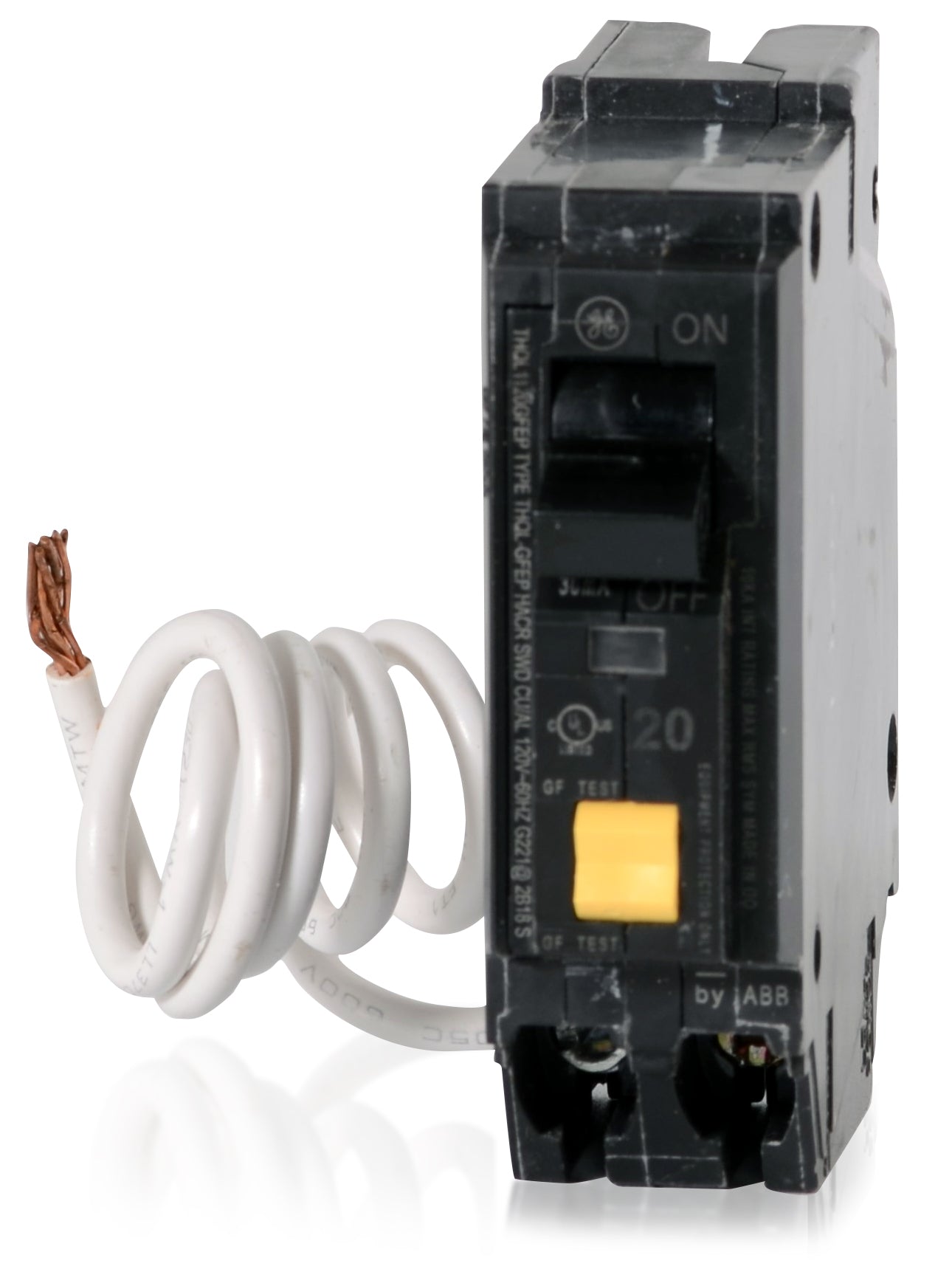

The General Electric THQL1120GFEP is a 1 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The THQL1120GFEP has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | Q-Line |
| Amperage | 20 |
| Voltage | 120/240VAC |
| Poles | 1 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | THQL |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | 14 to 8 AWG CU, 12 to 8 AWG AL |
| Temperature Rating | 10 to 50°C |
| Circuit Breaker Type | GFCI |
| Actuator Type | Pivot/Toggle Handle |
| Body Material | Plastic |
| Mpn | THQL1120GFEP |
| Upc | 783164321067 |
