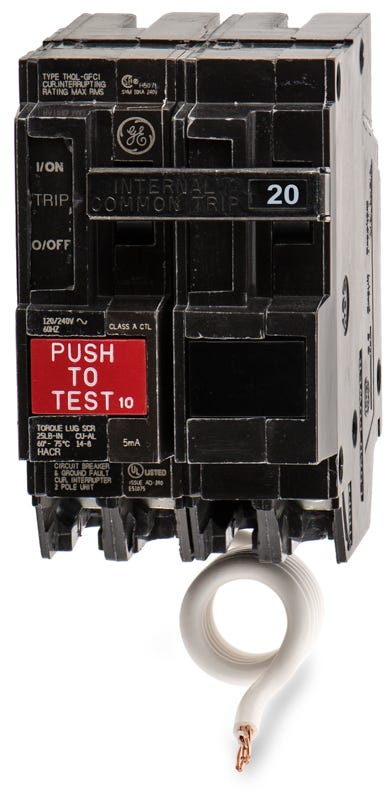

The General Electric THQL2120GF1 is a 2 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 120V. The THQL2120GF1 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | THQL |
| Amperage | 20 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | THQL |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Circuit Breaker Type | GFCI |
| Breaker Feature | Ground Fault |
| Mpn | THQL2120GF1 |
| Upc | 783164305128 |
| Gtin | 783164305128 |
