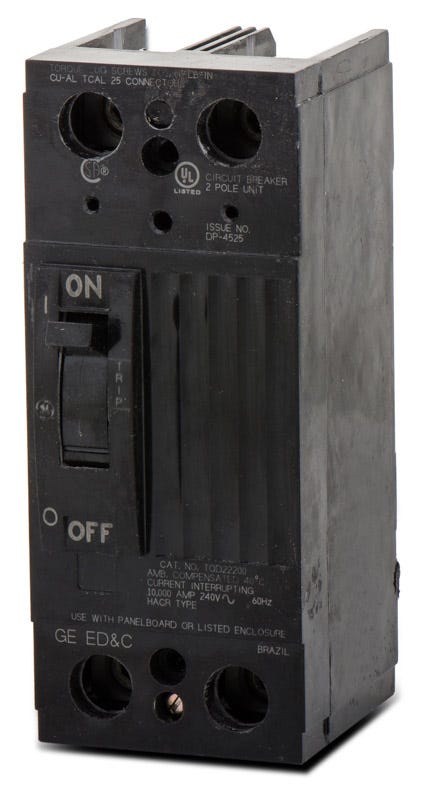

The General Electric TQD22125WL is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 14kAIC at 277/480VAC. The TQD22125WL has a feed-thru connection type and includes LI - long-time and instantaneous trip functions.
| Brand | General Electric |
|---|---|
| Series | TQD |
| Amperage | 125 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Approval | UL |
| Interrupting Rating | 14kAIC at 277/480VAC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Length (in) | 2.63 |
| Width (in) | 2.75 |
| Height (in) | 6.56 |
| For Use With | Lighting Panels, Modular Metering |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | Standard |
| Actuator Type | Toggle |
| Max Wire Size | 300 MCM |
| Min Wire Size | 4 AWG |
| Mpn | TQD22125WL |
| Upc | 783164021158 |
| Gtin | 783164021158 |
