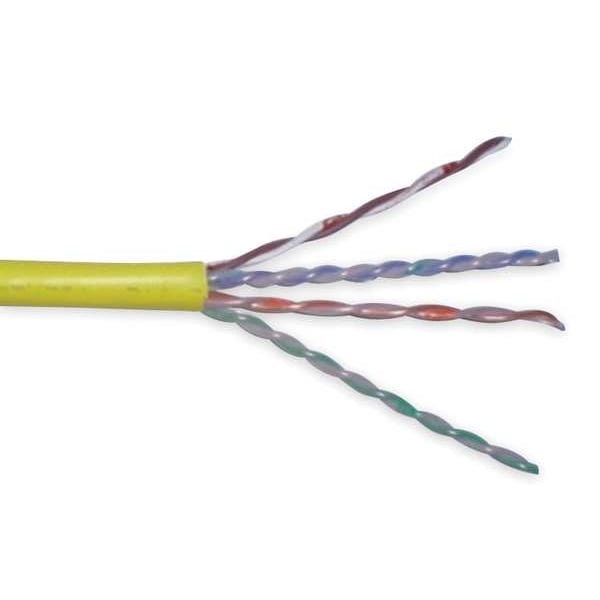

Cable, Cat 6, 23 AWG, 1000 ft, Yellow
| Item | Category Cable |
|---|---|
| Cable Length | 1,000 ft |
| Standards | ANSI/TIA/EIA 568B, ANSI/TIA/EIA 862, cUL Type CMP, ICEA S-90-661, ISO/IEC 11801 Ed. 2.0, UL 444, UL Type CMP |
| Wire Size | 23 AWG |
| Performance Category | 6 |
| Jacket Material - Wire and Cable | PVC |
| Category Type | 6 |
| Installation Temp. Range | 0 to 60 deg C |
| Bend Radius | 1 in |
| Category - Data Cable | 6 |
| Solid / Stranded | Solid |
| Package Type | Pulling Pack |
| Item - Data Cable | Category Cable |
| Operating Temp. Range | -10 Degrees to 60 Degrees C |
| Shielded / Unshielded | Unshielded |
| Number of Conductor Pairs | 4 |
| Pulling Force | 32 lb |
| Jacket Color | Yellow |
| Frequency | 350 MHz |
| Spool Length | 1,000 ft |
| Total Number of Conductors - Data Cable | 8 |
| Jacket Material | PVC |
| Outside Dia. | 0.215 in |
| Plenum Rated | Yes |
| Fire Rating - Data Cable | Plenum |
| NEC Article and Type | 800 CMP |
| Shielded | Unshielded |
| Conductor Size - Data Cable | 23 AWG |
| Package Type - Data Cable | Pulling Pack |
| Length | 1,000 ft |
| Number of Conductors | 8 |
| Fire Rating | Plenum |
| Solid/Stranded | Solid |
| Minimum Operating Temperature | 14 deg F |
| Maximum Frequency | 350 MHz |
| Conductor Gauge | 23 AWG |
| Outside Diameter | 1/4 in |
| Maximum Operating Temperature | 140 deg F |
| Number of Pairs | 4 |
| Package Quantity | 1 |
