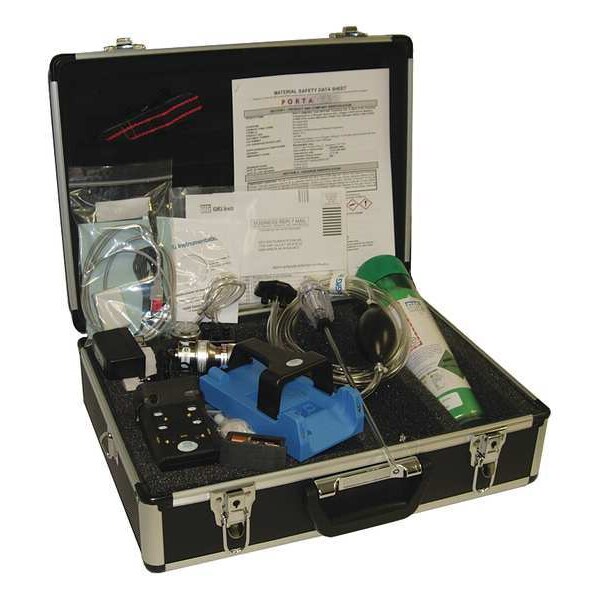

Multi-Gas Detector, IP67, Audible, Vibrating, Visual, LCD, 170 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Hydrogen Sulfide, Methane, Oxygen |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Adjustable |
| Battery Life | 170 hr |
| Operating Temp. Range | -20 Degrees to +50 Degrees C (-4 Degrees to +122 Degrees F) |
| Standards | AEx ia IIC T3, ANSI/ISA-12.13.01-2000, CSA Certified, CSA C22.2 No. 152-M 1984, EMI/RFI Resistance: EMC Directive 89/336/EEC, Ex da ia IIC T3 Ga -20 Less Than or Equal To Ta Less Than or Equal To +50 Degrees C T3 07.1934905, Ex ia IIC T3, IEC 60079-0:2011 (Ed.6), IEC 60079-1:2014 (Ed.7), IEC 60079-11:2011 (Ed.6), INMETRO: Ex da ia IIC T3 Ga, UL 913 |
| Sensor Range | CO 0 to 500 ppm, H2S 0 to 100 ppm, LEL 0 to 100%, O2 0 to 25% Vol |
| IP Rating | IP67 |
| Display Screen Type | LCD |
| Resolution | Carbon Monoxide 1 ppm, Combustible 0.5% LEL, Hydrogen Sulfide 0.1 ppm, Methane 0.02% vol, Oxygen 0.1% vol |
| Housing Color | Black |
| Includes | Calibration Adapter, Screwdriver |
| Features | Specifically Designed for Personal Protection Against Gas Dangers, Selection of Different Long-Life Sensors |
| Power Source | Battery |
| Manufacturer Warranty Length | 3 yr Sensors, Limited Lifetime Instruments and Electronics |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Measurement Range | Carbon Monoxide (0 to 500 ppm), Combustible Gas (0 to 100% LEL), Hydrogen Sulfide (0 to 100 ppm), Methane (0 to 5% vol), Oxygen (0 to 25% vol) |
| Overall Depth | 2.17 in |
| Operating Temperature - Maximum | 122 deg F |
| Accuracy | -10 to +20% |
| Operating Humidity - Maximum | 95 % |
| Includes Charger | Yes |
| Alarm Volume Level | 103 dBA |
| Housing Material | Polycarbonate/Rubber |
| Temperature Code | T3 |
| Visual Alert Type | LED, Red LED |
| Number of Batteries Required | 2 |
| Battery Size | AA |
| Number of Sensors | 3 |
| Mount Type | Handheld, Portable |
| Hazardous Location Specification | Class I Divisions 1 Groups A, B, C, D, Class I Zone 0 |
| Replaceable Battery | Yes |
| Number of Gases Detected | 4 |
| Data Logger | Yes |
| Sensor Type | Electrochemical, Catalytic |
| Overall Height | 4.33 in |
| For Environment | Refineries, Sewer Construction or Fire Brigades, Steel Industry |
| Sensor Life | 2 yr (Unfiltered LEL), 3 yr (Carbon Monoxide, Hydrogen Sulfide, Oxygen, Combustible LEL Sensors) |
| Operating Temperature - Minimum | -4 deg F |
| Overall Width | 2.95 in |
| Operating Humidity - Minimum | 5 % |
| Display Type | Digital |
| Resistance Properties | Water Resistant |
| Alert Type | Sound, Light, Vibration |
| Rechargeable Battery | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
