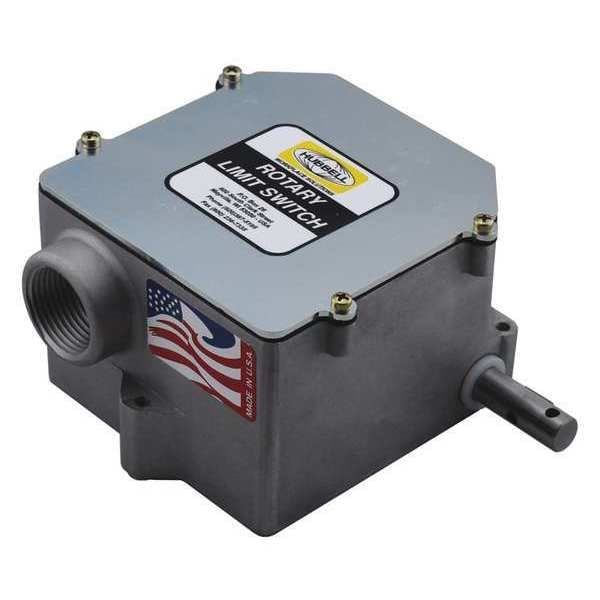

Interruptor de límite, rotativo, 3 circuitos normalmente cerrados/3 circuitos normalmente abiertos, de doble función de tiro simple.
| Item | Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | Rotary |
| Contact Form- Switches | 3NC/3NO, SPDT |
| Body Material | Rugged Die Cast Aluminum |
| Height | 3.32 in |
| Depth | 5.32 in |
| Contact Form | SPDT, 3NC, 3NO |
| Number of Poles | 1 |
| Gear Ratio | 80:1 |
| Series | 55 |
| NEMA Rating | 4 |
| Width | 6.28 in |
| Over Travel | 14 |
| Contact Form - Limit Switch | SPDT, 3NC, 3NO |
| Contacts Normally Closed | 3 |
| Contacts Normally Open | 3 |
| Package Quantity | 1 |
