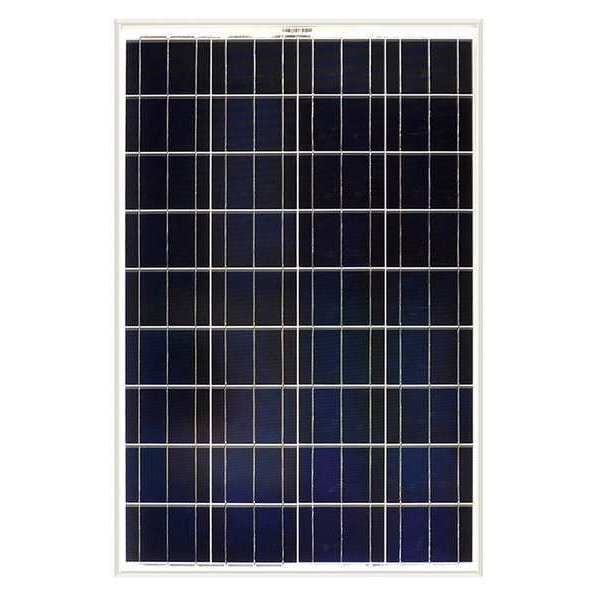

Monocrystalline Solar Panel, 100 W, 19.12V DC, 5.23 A, 36 Cells, 4mm PV
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Solar Panel |
| Maximum Power Point | 100 W |
| Nominal Output Power | 100 W |
| Cell Type | Monocrystalline |
| Voltage @ Maximum Power Point | 19.12 V DC |
| Current @ Maximum Power Point | 5.23 A |
| Overall Width | 27.15 in |
| Overall Height | 31.86 in |
| Overall Depth | 1.38 in |
| Number of Cells | 36 |
| Connector | 4mm PV |
| Frame | Yes |
| Cable Length | 4 ft |
| Green Environmental Attribute | Product Contributes to Providing Renewable Energy |
| Power Tolerance | 0 to 3% |
| Standards | CSA Certified, UL Listed |
| Short Circuit Current | 5.59 A |
| Weight | 15.4 lb |
| Max. System Voltage | 600V DC (UL) |
| Open Circuit Voltage | 23.1 V |
| Operating Temp. Range | -40 to 185 deg F |
| Module Efficiency | 21.5% |
| Includes | Junction Box |
| Rated Snow/Wind Load | 50 lb/sq ft |
| Maximum Operating Temperature | 85 deg C |
| Normal Operating Cell Temperature (NOCT) | 45 Degrees C |
| Compatible with Brand | Grape Solar |
| Minimum Operating Temperature | -40 deg C |
| Temperature Coefficient of PM | -0.41%/ Degrees C |
| Junction Box IP Rating | IP65 |
| Maximum Series Fuse Rating | 15 A |
| Manufacturer Warranty | 10 yr Limited 90% Power Output, 25 yr Limited 80% Power Output, 5 yr Limited Product |
| Compatible with Series | GS-Star |
| Maximum System Voltage | 600V (UL) |
| Package Quantity | 1 |
