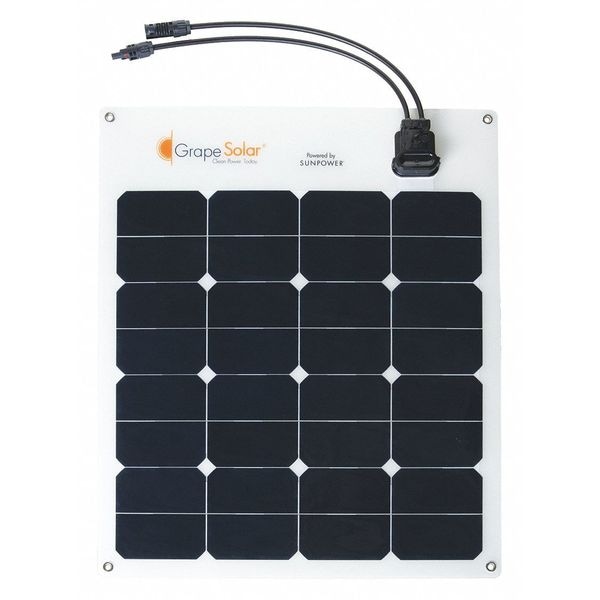

Monocrystalline Solar Panel, 50 W, 17.7V DC, 2.8 A, 36 Cells, Wire Lead
| Item | Solar Panel |
|---|---|
| Maximum Power Point | 50 W |
| Cell Type | Monocrystalline |
| Voltage @ Maximum Power Point | 17.7 V DC |
| Current @ Maximum Power Point | 2.8 A |
| Overall Width | 21.89 in |
| Overall Height | 25.83 in |
| Overall Depth | 0.19 in |
| Number of Cells | 36 |
| Connector | Wire Lead |
| Max. System Voltage | 150 V DC |
| Operating Temp. Range | -40 Degrees to 185 Degrees F |
| Open Circuit Voltage | 21.5 V |
| Weight | 2.2 lb |
| Green Environmental Attribute | Product Contributes to Providing Renewable Energy |
| Short Circuit Current | 2.95 A |
| Power Tolerance | +/-3% |
| Standards | CE Certified |
| Module Efficiency | 20% |
| Cable Length | 18 in |
| Frame | No |
| Compatible with Series | GS-Star |
| Rated Snow/Wind Load | 50 lb/sq ft |
| Manufacturer Warranty | 1 yr Limited |
| Maximum Operating Temperature | 185 deg F |
| Minimum Operating Temperature | -40 deg F |
| Maximum Series Fuse Rating | 10 A |
| Maximum System Voltage | 45V (UL) |
| Compatible with Brand | Grape Solar |
| Width | 21-1/16 in |
| Depth | 1/8 in |
| Height | 22-5/8 in |
| Panel Max. Power Point Voltage | 17.7 V DC |
| Panel Max. Power Point Current | 2.82 A |
| Nominal Output Power | 50 W |
| Package Quantity | 1 |
