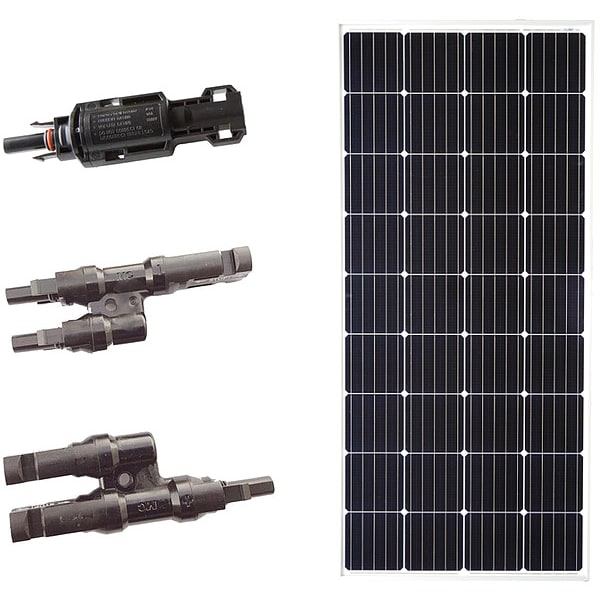

Monocrystalline Solar Panel Expansion Kit, 200 W, 20.3V DC, 9.85 A, 36 Cells, 4mm PV
| Item | Solar Panel Expansion Kit |
|---|---|
| Maximum Power Point | 200 W |
| Nominal Output Power | 200 W |
| Cell Type | Monocrystalline |
| Voltage @ Maximum Power Point | 20.3 V DC |
| Current @ Maximum Power Point | 9.85 A |
| Overall Width | 28-3/16 in |
| Overall Height | 61-7/16 in |
| Overall Depth | 1-3/8 in |
| Number of Cells | 36 |
| Connector | 4mm PV |
| Power Tolerance | 0 to 3% |
| Cable Length | 1 ft 3 in |
| Weight | 26.5 lb |
| Battery Capacity | Not Applicable |
| Standards | CSA Certified, UL Listed |
| Short Circuit Current | 10.33 A |
| Includes | (2) Extension Cables, (2) Standard PV T-Branch Connectors, 20A In-Line Fuse, Grape Solar GS-Star-200W 200-Watt Polycrystalline Solar Panel |
| Module Efficiency | 17.9% |
| Number of Solar Panels | 1 |
| Frame | Yes |
| Max. System Voltage | 600 V DC |
| Operating Temp. Range | -40 to 185 deg F |
| Open Circuit Voltage | 24.35 V |
| Normal Operating Cell Temperature (NOCT) | 45 Degrees C |
| Maximum Operating Temperature | 85 deg C |
| Minimum Operating Temperature | -40 deg C |
| Compatible with Series | GS-Star |
| Solar Panel Frame Material | Aluminum |
| Total System Power Output | 200 W |
| Temperature Coefficient of PM | -0.41%/ Degrees C |
| Rated Snow/Wind Load | 50 lb/sq ft |
| Includes Battery | No |
| Battery Voltage | 12 V DC |
| Package Quantity | 1 |
