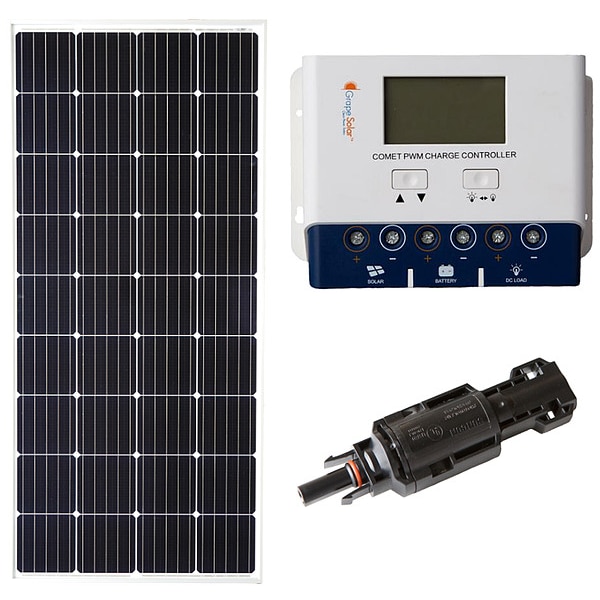

Monocrystalline Solar Panel Kit, 200 W, 20.3V DC, 5.23 A, 36 Cells, 4mm PV
| Item | Solar Panel Kit |
|---|---|
| Maximum Power Point | 200 W |
| Nominal Output Power | 200 W |
| Cell Type | Monocrystalline |
| Voltage @ Maximum Power Point | 20.3 V DC |
| Current @ Maximum Power Point | 5.23 A |
| Number of Cells | 36 |
| Connector | 4mm PV |
| For Use With | 12-Volt Batteries, Boats, Off-Grid Power Applications Including Cabins, Operating LED Lights, RVs, Small Electronic Devices, Small Pumps |
| Weight | 36 lb |
| Short Circuit Current | 5.59 A |
| Features | Anodized Frame, Monocrystalline Panels, Weatherproof Panel |
| Enclosure Material | Aluminum |
| Battery Type | Lithium-Ion |
| Standards | CSA Certified, UL Listed |
| Includes | 40A Grape Solar Comet Charge Controller, Cables, Grape Solar GS-Star-200W 200-Watt Monocrystalline Solar Panels |
| Mounting Hardware | Not Included |
| Modes of Operation | PWM Charge Controller |
| Battery Capacity | Not Applicable |
| Open Circuit Voltage | 23.1 V |
| Number of Solar Panels | 1 |
| Compatible with Series | GS-Star |
| Normal Operating Cell Temperature (NOCT) | 45 Degrees C |
| Battery Voltage | 12 V DC |
| Rated Snow/Wind Load | 50 lb/sq ft |
| Solar Panel Frame Material | Aluminum |
| Minimum Operating Temperature | -40 deg C |
| Includes Battery | No |
| Maximum Operating Temperature | 85 deg C |
| Temperature Coefficient of PM | -0.41%/ Degrees C |
| Total System Power Output | 200 W |
| Includes Mounting Hardware | No |
| Package Quantity | 1 |
