Polycrystalline Solar Panel Expansion Kit, 100 W, 18V DC, 5.23 A, 36 Cells, 4mm PV
| Item | Solar Panel Expansion Kit |
|---|---|
| Maximum Power Point | 100 W |
| Nominal Output Power | 100 W |
| Cell Type | Polycrystalline |
| Voltage @ Maximum Power Point | 18 V DC |
| Current @ Maximum Power Point | 5.23 A |
| Number of Cells | 36 |
| Connector | 4mm PV |
| Standards | CSA Certified, UL Listed |
| Enclosure Material | Aluminum |
| Battery Capacity | Not Applicable |
| Green Environmental Attribute | Product is Solely Powered by Solar Energy |

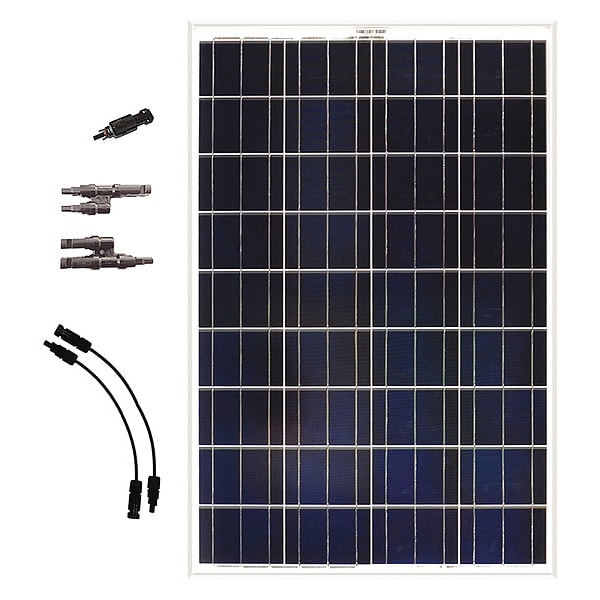

| Includes | (2) Extension Cables., (2) Standard PV T-Branch Connectors, Grape Solar GS-Star-100W 100-Watt Polycrystalline Solar Panel |
| Open Circuit Voltage | 23.1 V |
| Number of Solar Panels | 1 |
| Weight | 22 lb |
| Mounting | Ground |
| Short Circuit Current | 5.59 A |
| Mounting Hardware | Not Included |
| Modes of Operation | Always On |
| For Use With | Battery Charges,Pumps, Lights |
| Battery Type | Lithium-Ion |
| Features | Unique Frame Design with Strong Mechanical Strength |
| Normal Operating Cell Temperature (NOCT) | 45 Degrees C |
| Total System Power Output | 100 W |
| Battery Voltage | 12 V DC |
| Solar Panel Frame Material | Aluminum |
| Rated Snow/Wind Load | 50 lb/sq ft |
| Includes Battery | No |
| Maximum Operating Temperature | 85 deg C |
| Includes Mounting Hardware | No |
| Temperature Coefficient of PM | -0.41%/ Degrees C |
| Minimum Operating Temperature | -40 deg C |
| Compatible with Series | GS-Star |
| Package Quantity | 1 |
