Polycrystalline Solar Panel Kit, 100 W, 18V DC, 5.23 A, 36 Cells, MC4
| Item | Solar Panel Kit |
|---|---|
| Maximum Power Point | 100 W |
| Nominal Output Power | 300 W |
| Cell Type | Polycrystalline |
| Voltage @ Maximum Power Point | 18 V DC |
| Current @ Maximum Power Point | 5.23 A |
| Number of Cells | 36 |
| Connector | MC4 |
| Open Circuit Voltage | 23.1 V |
| Green Environmental Attribute | Product is Solely Powered by Solar Energy |
| Features | Unique Frame Design with Strong Mechanical Strength |
| Standards | CSA Certified, UL Listed |
| Short Circuit Current | 5.59 A |
| For Use With | Laptops, LED Lights, Pumps, Small Electronic Devices |
| Mounting Hardware | Not Included |
| Modes of Operation | Always On |
| Enclosure Material | Aluminum |
| Mounting | Ground |
| Battery Type | Lithium-Ion |
| Weight | 75 lb |
| Number of Solar Panels | 3 |
| Battery Capacity | Not Applicable |

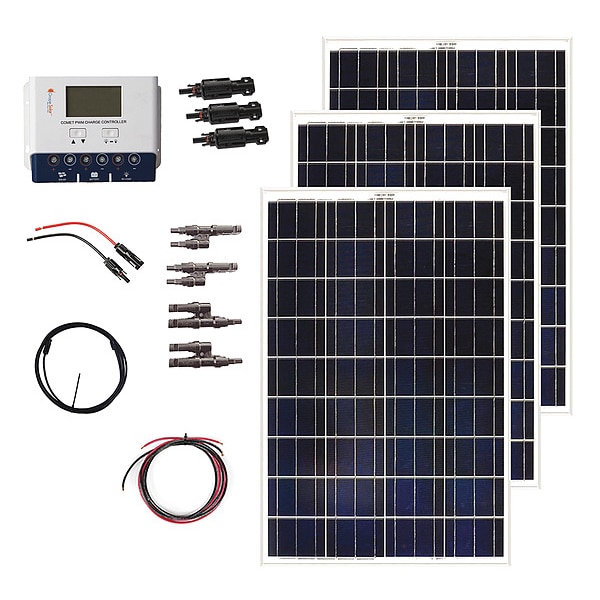

| Includes | 3-Piece Grape Solar GS-Star-100W 100-Watt Polycrystalline Solar Panels, 40A Grape Solar Comet Charge Controller, Cables |
| Includes Battery | No |
| Battery Voltage | 12 V DC |
| Rated Snow/Wind Load | 50 lb/sq ft |
| Includes Mounting Hardware | No |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 85 deg C |
| Total System Power Output | 300 W |
| Solar Panel Frame Material | Aluminum |
| Temperature Coefficient of PM | -0.41%/ Degrees C |
| Compatible with Series | GS-Star |
| Normal Operating Cell Temperature (NOCT) | 45 Degrees C |
| Package Quantity | 1 |
