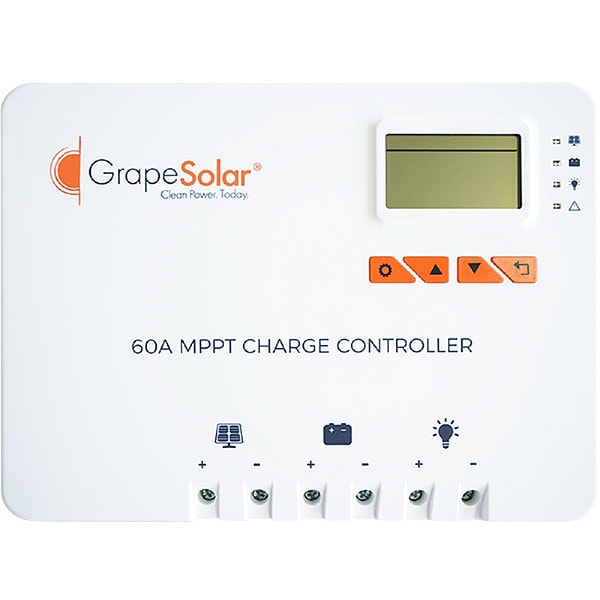

Solar Charge Cntrllr, 60A, 150V DC, 24 V DC
| Item | Solar Charge Controller |
|---|---|
| Max. Battery Charging Voltage | 24 V DC |
| Max. Current | 60 A |
| Depth | 3-5/8 in |
| Battery Type | Flooded Lead Acid, Gel Cell, Lithium-Ion |
| Operating Temp. | -31 to 113 deg F |
| No-Load Loss | 10 mA @ 24V, 12 mA @ 12V, 6 mA @ 48V, 8 mA @ 36V |
| Width | 8-1/8 in |
| Features | 24V, Large LCD Screen, Power Point Tracking Algorithms and Advanced Digital Power Supply Technology, TVS Lightning Protection, Works with Battery of 12 |
| Height | 11-1/4 in |
| IP Rating | IP32 |
| Max. Solar Input Voltage | 150 V DC |
| Green Environmental Attribute | Product is Powered by Renewable Energy |
| Interface | Bluetooth, RS485 |
| Maximum Battery Charging Voltage | 24 V DC |
| Maximum Operating Temperature | 113 deg F |
| Compatible with Brand | Grape Solar |
| Maximum Solar Input Voltage | 150 V DC |
| Minimum Operating Temperature | -31 deg F |
| Overall Width | 8.3 in |
| Overall Height | 3-1/2 in |
| Maximum Current | 60 A |
| Overall Depth | 11 in |
| Package Quantity | 1 |
