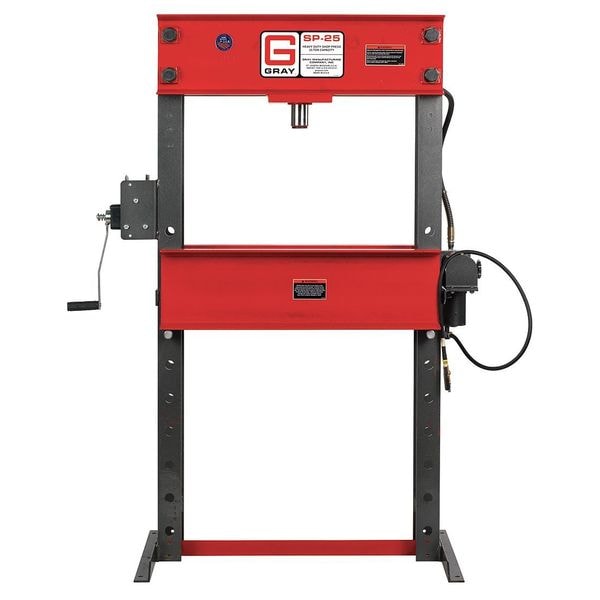

Hydraulic Press, 25 t, Air Pump, 70-3/8 In
| Frame Capacity | 25 ton |
|---|---|
| Frame Type | H-Frame |
| Cylinder Stroke | 6-1/4 in |
| Pump Type | Air |
| Base Length | 70-3/8 in |
| Base Width | 40-1/2 in |
| Overall Height | 70-3/8 in |
| Total Height | 70.38 in |
| Ram Travel | 15-3/4 in |
| Item | Hydraulic Press |
| Hose Length | 5 ft 2 in |
| Working Width | 30 in |
| Pump Handle Effort @ Rated Capacity (Lb.) | Air/Hydraulic Power Unit |
| Bed Height | 44" |
| Total Width | 40-1/2 in |
| Includes | Arbor Plates, Pushing Adapter Kit, V-Blocks |
| Working Height | 44" |
| Features | 2-1/4 in Stationary Ram Retracted by Internal Spring;Ten Bolster Positions Spaced in 4-1/2 in Increments |
| Cylinder Type | Single Acting |
| Application | Pressing Bearings |
| Stroke | 6-1/4 in |
| Overall Width | 40-1/2 in |
| Voltage | Not Applicable |
| Phase | Not Applicable |
| Capacity | 25 ton |
| Standards | ISO 9001 |
| Horsepower | Not Applicable |
| Current | Not Applicable |
| Ram Size | 2-1/4 in |
| Number of Bed Positions | 10 |
| Ram-to-Table Distance - Minimum | 5-1/4 in |
| Press Bed Depth | 12 in |
| Ram-to-Table Distance - Maximum | 43-1/2 in |
| Hydraulic Hose Length | 62 in |
| Motor Speed - Maximum | Not Applicable |
| Base Depth | 70-3/8 in |
| Press Bed Width | 30 in |
| Operation | Air |
| Package Quantity | 1 |
