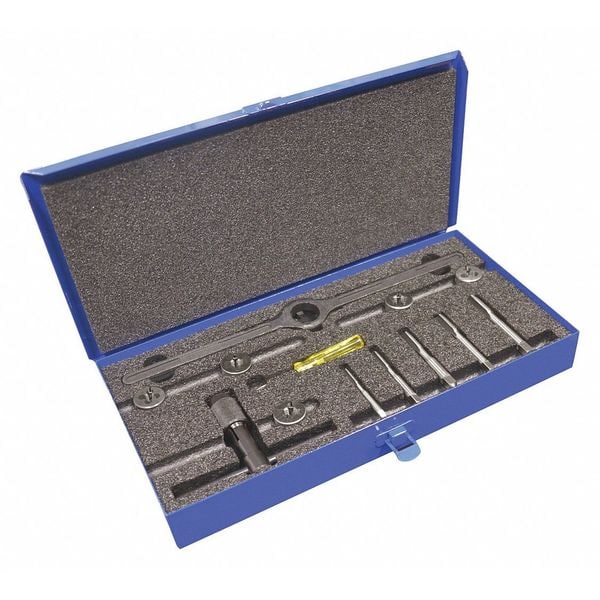

13PC Plug Hand Taps and Round Adjustable Dies Set 1/4-20 To 1/2-13 UNC
| Item | Tap and Die Set |
|---|---|
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Number of Pieces | 13 |
| Tap Dimension Type | Inch |
| Finish | Bright |
| Die Shape | Round |
| Die Material | High Speed Steel |
| Tap Wrench Number | T10 |
| Thread Type | UNC |
| Tap Chamfer | Plug |
| Sizes Included | #1/4-20, #5/16-18, #3/8-16, #7/16-14, #1/2-13 |
| Features | General Purpose Applications |
| Includes | Hand Taps, Carbon Round Adjustable Dies |
| Size Range | 1/4" to 1/2" |
| Tap Type | Hand |
| Min. Tap Thread Size | 1/4"-20 |
| Die Material Grade | Steel |
| Helix Angle | 0 deg |
| Powdered Metal Base Material | No |
| Die Thread Sizes Included | 1/2"-13 NC, 1/4"-20 NC, 3/8"-16 NC, 5/16"-18 NC, 7/16"-14 NC |
| Max. Die Thread Size | 1/2"-13 |
| Case Type | Metal |
| Secondary Material Application ISO Code | M |
| 55% Thread Drill Size | #3, 11.30mm, 8.40mm, I, W |
| Thread Limit | H3 |
| Extended Shank | No |
| Die Finish | Bright (Uncoated) |
| Tap Sizes Included | 1/2 in -13 NC, 1/4 in -20 NC, 3/8 in -16 NC, 5/16 in -18 NC, 7/16 in -14 NC |
| Extension Tap | No |
| Die Series | 382 |
| Tap Material Grade | M2 |
| Dimensions Standard | Fractional Inch |
| Primary Material Application | All Materials |
| Tap Series | 411 |
| Tap Shank Standard | Table 302 |
| Min. Bore Dia. | 1/4 in -20 NC |
| Standards | ANSI |
| Number Of Taps | 5 |
| Tap Shank Dia. | Table 302 |
| Thread Standard | UNC |
| Primary Material Application ISO Code | K, M, N, P, H, S |
| Finish - Machining | Bright |
| Measurement System | Fractional Inch |
| Coolant Fed | Non-Coolant Through |
| Max. Tap Thread Size | 1/2"-13 |
| 75% Thread Drill Size | #7, 27/64 in, 5/16 in, F, U |
| Secondary Material Application | Stainless Steel |
| Material - Machining | High Speed Steel |
| Threads per Inch | 13, 14, 16, 18, 20 |
| Class of Fit | 2 B |
| Thread Sizes Included | 1/2"-13 NC, 1/4"-20 NC, 3/8"-16 NC, 5/16"-18 NC, 7/16"-14 NC |
| Die Type | Adjustable |
| Spiral Direction | Neutral |
| Tap Overall Length | Table 302 |
| Extended Neck | No |
| Number of Dies in Set | 5 |
| 65% Thread Drill Size | #5, 11.00mm, 17/64 in, P, V |
| Package Quantity | 1 |
