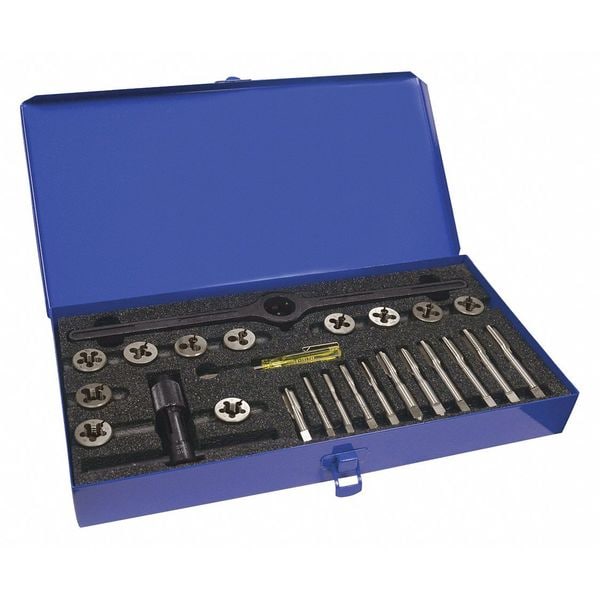

25PC Plug Hand Taps and Round Adjustable Dies Set 11 Sizes 1/4-20 To 1/2-20 UNC UNF & 1/8-27NPT
| Item | Tap and Die Set |
|---|---|
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Number of Pieces | 25 |
| Size Range | 1/8" to 1/2" |
| Die Shape | Round |
| Sizes Included | 1/8"-27, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20 |
| Tap Chamfer | Plug |
| Tap Wrench Number | T10 |
| Includes | Hand Taps and Carbon Steel Round Adjustable Dies |
| Die Material | High Speed Steel |
| Tap Dimension Type | Inch |
| Thread Type | NPT, UNC, UNF |
| Finish | Bright |
| Features | General Purpose Applications |
| Min. Bore Dia. | 1/8 in -27 NPT |
| Helix Angle | 0 deg |
| Secondary Material Application ISO Code | M |
| Standards | ANSI |
| Max. Die Thread Size | 1/2"-20 |
| Powdered Metal Base Material | No |
| Tap Type | Hand |
| Case Type | Metal |
| Threads per Inch | 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 27, 28 |
| Coolant Fed | Non-Coolant Through |
| Spiral Direction | Neutral |
| Extended Shank | No |
| Primary Material Application | All Materials |
| Dimensions Standard | Fractional Inch |
| Finish - Machining | Bright |
| Tap Overall Length | Table 302 |
| Die Series | 382 |
| Number Of Taps | 11 |
| Class of Fit | 2 B |
| Measurement System | Fractional Inch |
| Min. Tap Thread Size | 1/8"-27 |
| Tap Shank Dia. | Table 302 |
| Die Type | Adjustable |
| Die Material Grade | Steel |
| Thread Standard | UNC, UNF, NPT |
| Tap Sizes Included | 1/2 in -13 NC, 1/2 in -20 NF, 1/4 in -20 NC, 1/4 in -28 NF, 1/8 in -27 NPT, 3/8 in -16 NC, 3/8 in -24 NF, 5/16 in -18 NC, 5/16 in -24 NF, 7/16 in -14 NC, 7/16 in -20 NF |
| Die Finish | Bright (Uncoated) |
| Thread Sizes Included | 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 7/16"-14 NC, 7/16"-20 NF |
| 65% Thread Drill Size | #5, 10.00mm, 11.00mm, 11.60mm, 17/64 in, 7/32 in, J, P, R, V |
| 75% Thread Drill Size | #7, 11.40mm, 27/64 in, 5.45mm, 5/16 in, 8.50mm, 9.95mm, F, I, U |
| Thread Limit | H3 |
| Tap Material Grade | M2 |
| Tap Shank Standard | Table 302 |
| Die Thread Sizes Included | 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 7/16"-14 NC, 7/16"-20 NF |
| Extended Neck | No |
| 55% Thread Drill Size | #3, 10.20mm, 11.30mm, 11.80mm, 11/32 in, 5.70mm, 8.40mm, 9/32 in, I, W |
| Max. Tap Thread Size | 1/2"-20 |
| Extension Tap | No |
| Number of Dies in Set | 11 |
| Material - Machining | High Speed Steel |
| Primary Material Application ISO Code | K, M, N, P, H, S |
| Tap Series | 411 |
| Secondary Material Application | Stainless Steel |
| Package Quantity | 1 |
