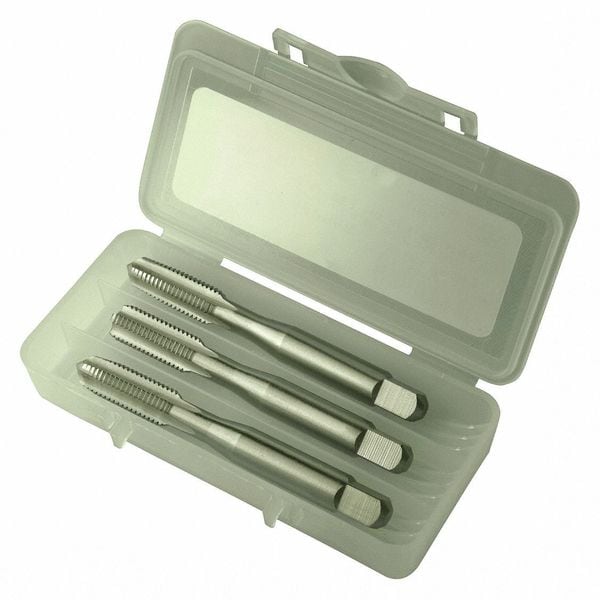

3pc HSS Taper, Plug & Bottoming Hand Tap Set HTGP Greenfield Threading Bright 4-Flute GH3 5/16-24UNF
| Item | Tap Set |
|---|---|
| Overall Length | 2-23/32 in |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Tap Thread Size | 5/16"-24 |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Shank Dia. | 5/16 in |
| Number of Pieces | 3 |
| Tap Style | Straight Flute |
| Tap Grouping | Tap Set |
| Pitch Diameter Limit | H3 |
| Standards | USCTI 302 |
| Includes | One Each Taper, Plug, and Bottoming |
| List Number | 303 |
| Tap Chamfer | Bottoming, Plug, Taper |
| Tap Thread Type | UNF |
| Tap Dimension Type | Inch |
| Thread Length | 1-1/8 in |
| Thread Standard | UNF |
| Class of Fit | 3 B |
| Thread Limit | H3 |
| Package Quantity | 1 |
