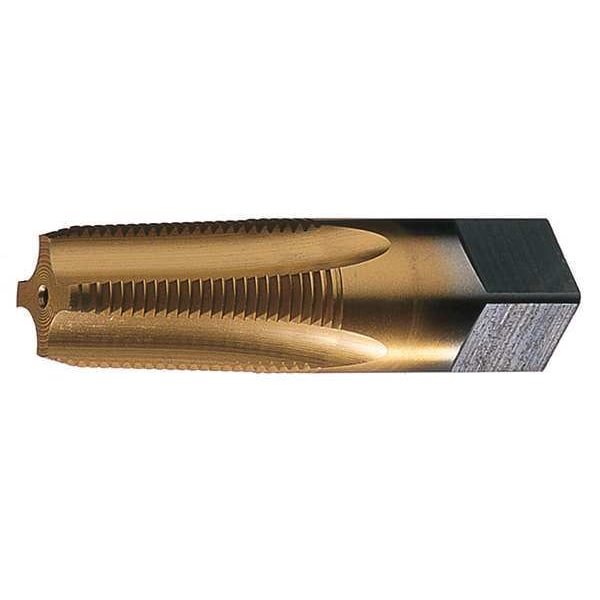

Pipe Tap, 1/4"-18, Semi-Bottoming, 4 Flutes, NPTF
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/4"-18 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 4 |
| Tap Thread Type | NPTF |
| Thread Direction | Right Hand |
| Tap Material | High Speed Steel |
| Thread Length | 1-1/16 in |
| Tap Size | 1/4" |
| Number of Pieces | 1 |
| Tap Style | Pipe |
| Tap Finish | Bright |
| Shank Dia. | 0.562 in |
| Standards | USCTI Table 311 |
| List Number | PTT |
| Tap Dimension Type | Inch |
| Tap Grouping | Tap |
| Pitch Diameter Limit | H3 |
| Overall Length | 2-7/16 in |
| Cutting Direction - Machining | Right Hand |
| Series | PTT |
| 75% Thread Drill Size | 7/16 in |
| Threads per Inch | 18 |
| Tap Length Standard | USCTI Table 311 |
| Measurement System | Fractional Inch |
| Material Grade - Machining | PTT |
| Primary Material Application ISO Code | P, N, K, M |
| Thread Limit | H3 |
| Shank Length | 1-3/8 in |
| Primary Material Application | Brass, Bronze, Copper, Cast Iron, Aluminum, Stainless Steel, Steel |
| Spiral Direction | Neutral |
| Thread Standard | NPTF |
| Thread Size | 1/4"-18 |
| Helix Angle | 0 deg |
| Square Size | 0.421 in |
| Drill Bit Size | 27/64 in, 7/16 in |
| Tap Shank Standard | USCTI Table 311 |
| Size | 1/4" |
| Package Quantity | 1 |
