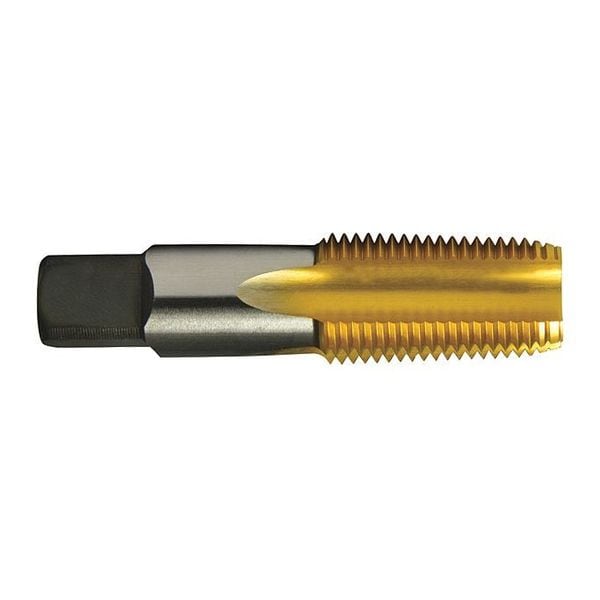

Pipe Tap, 1/8"-27, Semi-Bottoming, 4 Flutes, NPTF
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/8"-27 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 4 |
| Tap Thread Type | NPTF |
| Tap Finish | TiN |
| Standards | USCTI Table 311 |
| Shank Dia. | 7/16 in |
| Thread Length | 3/4 in |
| Tap Style | Pipe |
| Tap Material | High Speed Steel |
| Tap Dimension Type | Inch |
| Thread Direction | Right Hand |
| Overall Length | 2-1/8 in |
| Tap Size | 1/8" |
| Cutting Direction - Machining | Right Hand |
| Series | PTT-TN |
| Tap Shank Standard | USCTI Table 311 |
| 75% Thread Drill Size | Q |
| Primary Material Application ISO Code | P, K, M |
| Square Size | 0.328 in |
| Shank Length | 1-3/8 in |
| Threads per Inch | 27 |
| Measurement System | Fractional Inch |
| Helix Angle | 0 deg |
| Thread Size | 1/8"-27 |
| Material Grade - Machining | PTT-TN |
| Drill Bit Size | 21/64 in, Q |
| Tap Length Standard | USCTI Table 311 |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Spiral Direction | Neutral |
| Thread Standard | NPTF |
| List Number | PTT-TN |
| Number of Pieces | 1 |
| Pitch Diameter Limit | Not Rated |
| Package Quantity | 1 |
