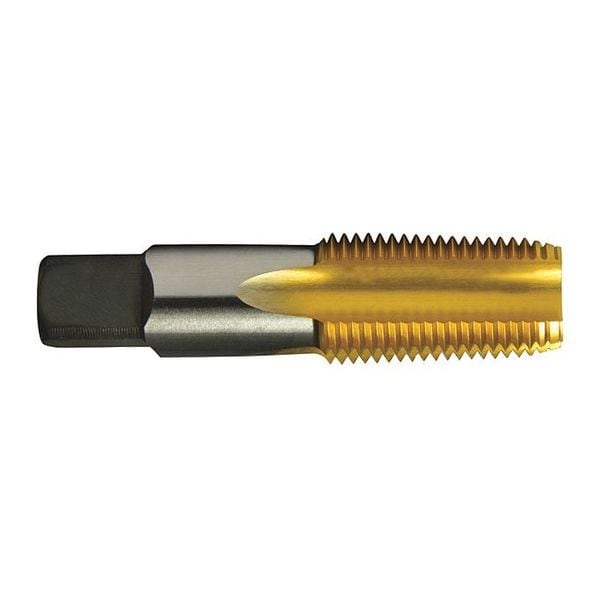

Pipe Tap, 3/4"-14, Semi-Bottoming, 5 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 3/4"-14 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 5 |
| Tap Thread Type | NPT |
| Pitch Diameter Limit | Not Rated |
| Standards | USCTI Table 311 |
| List Number | PTT-TN |
| Overall Length | 3-1/4 in |
| Thread Length | 1-3/8 in |
| Thread Direction | Right Hand |
| Tap Style | Pipe |
| Tap Finish | TiN |
| Number of Pieces | 1 |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Shank Dia. | 29/32 in |
| Tap Size | 3/4" |
| Cutting Direction - Machining | Right Hand |
| Series | PTT-TN |
| Threads per Inch | 14 |
| Measurement System | Fractional Inch |
| Material Grade - Machining | PTT-TN |
| Tap Length Standard | USCTI Table 311 |
| Square Size | 0.679 in |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application ISO Code | P, K, M |
| Spiral Direction | Neutral |
| Helix Angle | 0 deg |
| 75% Thread Drill Size | 0.9063 in |
| Thread Size | 3/4"-14 |
| Drill Bit Size | 29/32 in, 57/64 in |
| Shank Length | 1-7/8 in |
| Tap Shank Standard | USCTI Table 311 |
| Thread Standard | NPT |
| Package Quantity | 1 |
