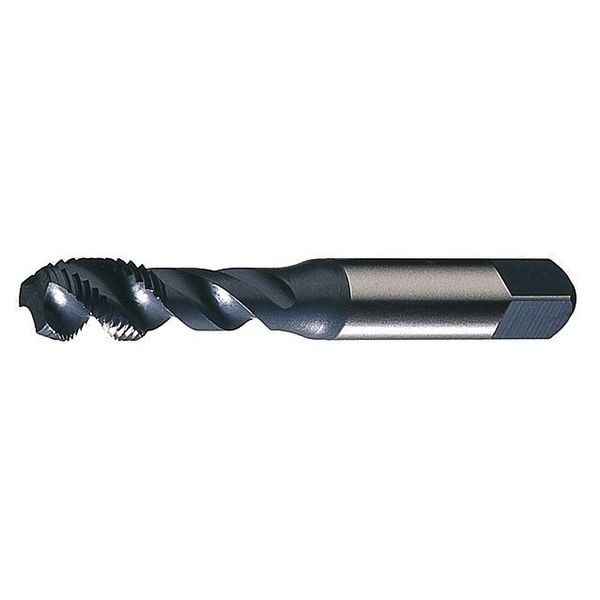

Spiral Flute Tap, 5/16"-18, Semi-Bottoming, UNC, 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-23/32 in |
| Tap Style | Flute |
| Shank Dia. | 0.318 in |
| Tap Chamfer | Semi-Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | Powdered Metal |
| Tap Size | 5/16" |
| Number of Flutes | 3 |
| Thread Length | 11/16 in |
| Tap Thread Type | UNC |
| Tap Thread Size | 5/16"-18 |
| Thread Direction | Right Hand |
| List Number | SFS |
| Tap Grouping | Tap |
| Standards | USCTI Table 302A |
| Tap Finish | Steam Oxide |
| Pitch Diameter Limit | H3 |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Square Size | 0.238 in |
| Tap Shank Standard | USCTI Table 302A |
| Drill Bit Size | F |
| Series | SFS |
| Measurement System | Fractional Inch |
| 75% Thread Drill Size | F |
| Helix Angle | 40 deg |
| Shank Length | 1-19/32 in |
| Spiral Direction | Right Hand |
| Threads per Inch | 18 |
| 55% Thread Drill Size | I |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| 65% Thread Drill Size | 17/64 in |
| Thread Limit | H3 |
| Shank Type - Machining | Straight |
| Class of Fit | 2 B |
| Thread Size | 5/16"-18 |
| Thread Standard | UNC |
| Size | 5/16 |
| Package Quantity | 1 |
