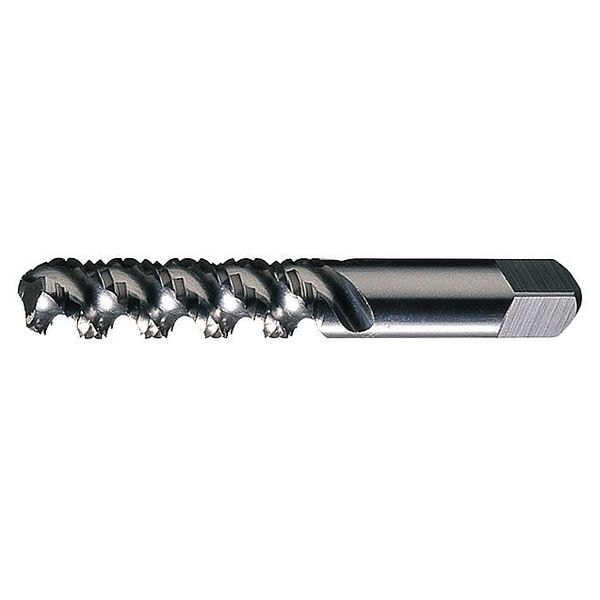

Spiral Flute Tap, #8-32, Bottoming, UNC, 3 Flutes, Bright
| Item | Spiral Flute Tap |
|---|---|
| Overall Length | 2-1/8 in |
| Tap Style | Flute |
| Shank Dia. | 0.168 in |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #8 |
| Number of Flutes | 3 |
| Thread Length | 3/8 in |
| Tap Grouping | Tap |
| Standards | USCTI Table 302A |
| Tap Thread Size | #8-32 |
| Tap Thread Type | UNC |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | #29 |
| Material Grade - Machining | Bright |
| Tap Shank Standard | USCTI Table 302A |
| Extended Neck | Yes |
| Thread Standard | UNC |
| Measurement System | Pipe |
| Helix Angle | 52 deg |
| Thread Size | #8-32 |
| 55% Thread Drill Size | 3.6 mm |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Steel |
| Spiral Direction | Right Hand |
| Threads per Inch | 32 |
| Square Size | 0.131 in |
| Thread Limit | H3 |
| Series | SFGP |
| Shank Type - Machining | Straight |
| 65% Thread Drill Size | 3.5 mm |
| Shank Length | 1-3/8 in |
| Class of Fit | 2 B |
| Primary Material Application ISO Code | P, N |
| 75% Thread Drill Size | 3.40mm |
| Size | #8 |
| List Number | SFGP |
| Pitch Diameter Limit | H3 |
| Number of Pieces | 1 |
| Package Quantity | 1 |
