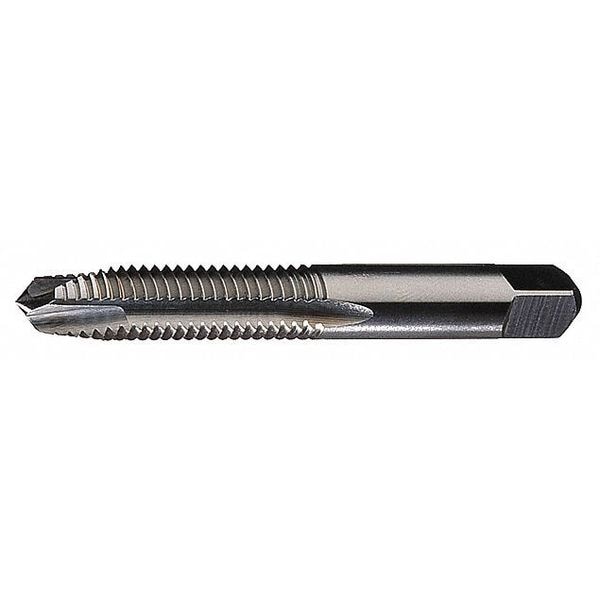

Spiral Point Tap, #10-24, Plug, UNC, 2 Flutes, Bright
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.194 in |
| Tap Material | High Speed Steel |
| Tap Dimension Type | Inch |
| Tap Chamfer | Plug |
| Tap Size | #10 |
| Tap Style | Spiral Point |
| Overall Length | 2-3/8 in |
| Number of Flutes | 2 |
| Tap Grouping | Tap |
| Tap Thread Size | #10-24 |
| Standards | USCTI Table 302A |
| Pitch Diameter Limit | H3 |
| Number of Pieces | 1 |
| Thread Length | 1/2 in |
| Tap Thread Type | UNC |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| List Number | SPGP |
| Cutting Direction - Machining | Right Hand |
| Spiral Direction | Neutral |
| Thread Size | #10-24 |
| Measurement System | Pipe |
| Threads per Inch | 24 |
| 65% Thread Drill Size | #23 |
| Shank Type - Machining | Straight |
| Series | SPGP |
| 75% Thread Drill Size | #25 |
| Drill Bit Size | #26 |
| Square Size | 0.152 in |
| 55% Thread Drill Size | #21 |
| Extended Neck | Yes |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Shank Length | 1-1/2 in |
| Thread Standard | UNC |
| Primary Material Application ISO Code | P, N |
| Primary Material Application | All Materials |
| Helix Angle | 0 deg |
| Size | #10 |
| Package Quantity | 1 |
