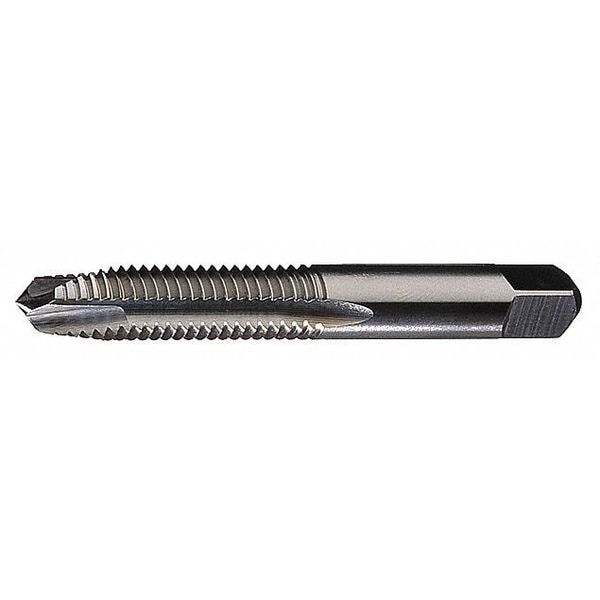

Spiral Point Tap, 1/2"-13, Plug, UNC, 3 Flutes, Bright
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.367 in |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | 1/2" |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Overall Length | 3-3/8 in |
| Number of Flutes | 3 |
| Tap Thread Type | UNC |
| Standards | USCTI Table 302A |
| Thread Direction | Right Hand |
| Tap Thread Size | 1/2"-13 |
| Tap Grouping | Tap |
| Thread Length | 15/16 in |
| Pitch Diameter Limit | H5 |
| Tap Finish | Bright |
| List Number | SPGP |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Series | SPGP |
| Threads per Inch | 13 |
| Measurement System | Fractional Inch |
| Drill Bit Size | 27/64 in |
| Thread Standard | UNC |
| Thread Limit | H5 |
| 65% Thread Drill Size | 11 mm |
| Primary Material Application | All Materials |
| Spiral Direction | Neutral |
| Class of Fit | 2B-3B |
| Primary Material Application ISO Code | P, N |
| Shank Type - Machining | Straight |
| Thread Size | 1/2"-13 |
| Extended Neck | Yes |
| 75% Thread Drill Size | 0.4219 in |
| Square Size | 0.275 in |
| Shank Length | 1-23/32 in |
| 55% Thread Drill Size | 11.3 mm |
| Helix Angle | 0 deg |
| Size | 1/2 |
| Package Quantity | 1 |
