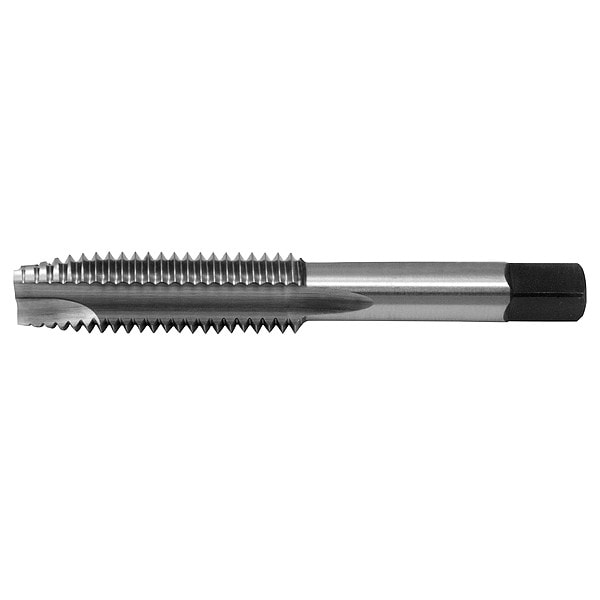

Spiral Point Tap, 3/8"-16, Bottoming, 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Tap Thread Size | 3/8"-16 |
| Tap Chamfer | Bottoming |
| Number of Flutes | 3 |
| Thread Size | 3/8"-16 |
| Tap Material | High Speed Steel |
| Thread Standard | UNC |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| Measurement System | Decimal Inch |
| Thread Limit | H3 |
| Standards | USCTI Table 302A |
| Thread Length | 3/4 in |
| Drill Bit Size | 3/8 in |
| Shank Dia. | 0.381 in |
| Threads per Inch | 16 |
| Overall Length | 2.94 in |
| Primary Material Application | Non-Ferrous, Steel |
| Extended Neck | Yes |
| Spiral Direction | Right Hand |
| Tap Length Standard | USCTI |
| Shank Type - Machining | Straight with Square |
| 75% Thread Drill Size | 8 mm |
| Features | General Purpose |
| Class of Fit | 2B |
| Primary Material Application ISO Code | P, N |
| Tap Shank Standard | USCTI |
| Square Size | 0.4375 x 0.2860 in |
| Package Quantity | 1 |
