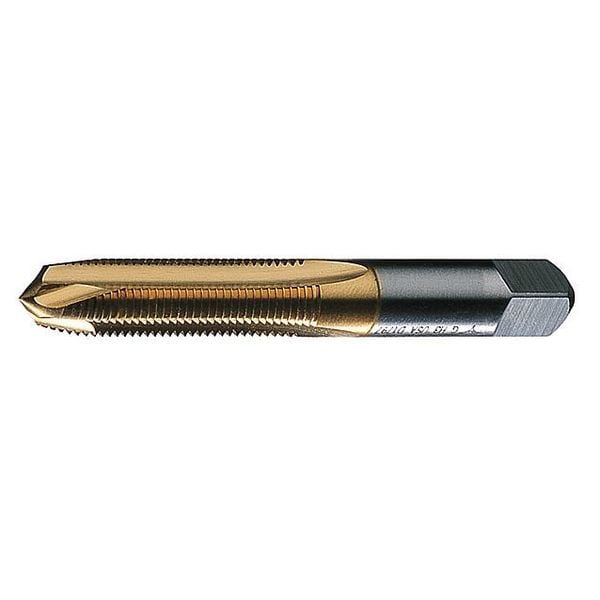

Spiral Point Tap, 3/8"-16, Plug, UNC, 3 Flutes, TiN
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.381 in |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | 3/8" |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Overall Length | 2-15/16 in |
| Number of Flutes | 3 |
| Thread Length | 1-1/4 in |
| List Number | SPGP-TN |
| Pitch Diameter Limit | H3 |
| Tap Thread Type | UNC |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Tap Grouping | Tap |
| Tap Thread Size | 3/8"-16 |
| Standards | USCTI Table 302A |
| Tap Finish | TiN |
| Cutting Direction - Machining | Right Hand |
| Shank Length | 1-11/16 in |
| Thread Size | 3/8"-16 |
| Series | SPGP-TN |
| Drill Bit Size | 5/16 in |
| Measurement System | Fractional Inch |
| Thread Standard | UNC |
| Spiral Direction | Neutral |
| Square Size | 0.286 in |
| 55% Thread Drill Size | 8.4 mm |
| Shank Type - Machining | Straight |
| 75% Thread Drill Size | 5/16 in |
| 65% Thread Drill Size | P |
| Class of Fit | 2B |
| Primary Material Application | All Materials |
| Threads per Inch | 16 |
| Thread Limit | H3 |
| Extended Neck | Yes |
| Primary Material Application ISO Code | P, M |
| Helix Angle | 0 deg |
| Size | 3/8 |
| Package Quantity | 1 |
