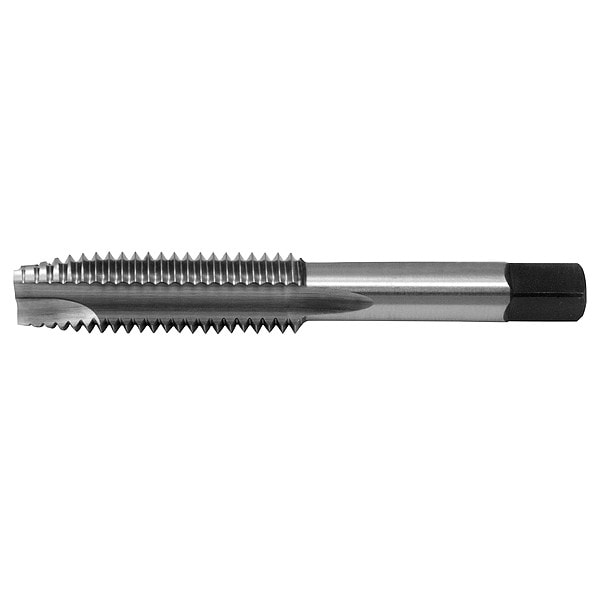

Spiral Point Tap, 5/8"-11, Bottoming, 3 Flutes
| Item | Spiral Point Tap |
|---|---|
| Tap Thread Size | 5/8"-11 |
| Tap Chamfer | Bottoming |
| Number of Flutes | 3 |
| Shank Dia. | 0.48 in |
| Thread Size | 5/8"-11 |
| Tap Finish | Bright |
| Overall Length | 3.81 in |
| Thread Standard | UNC |
| Thread Length | 1.09 in |
| Thread Direction | Right Hand |
| Tap Material | High Speed Steel |
| Drill Bit Size | 5/8 in |
| Thread Limit | H3 |
| Standards | USCTI Table 302A |
| Threads per Inch | 11 |
| Measurement System | Decimal Inch |
| Shank Type - Machining | Straight with Square |
| Primary Material Application | Non-Ferrous, Steel |
| Tap Shank Standard | USCTI |
| 75% Thread Drill Size | 13.5 mm |
| Class of Fit | 2B |
| Features | General Purpose |
| Primary Material Application ISO Code | P, N |
| Spiral Direction | Right Hand |
| Square Size | 0.5625 x 0.3600 in |
| Tap Length Standard | USCTI |
| Package Quantity | 1 |
