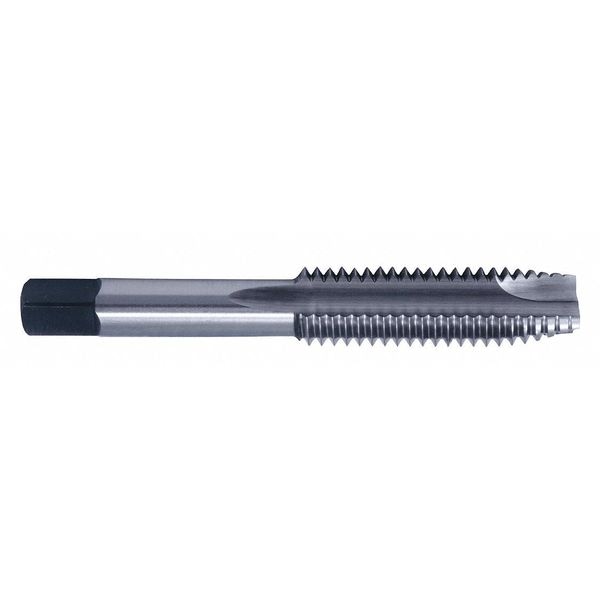

Straight Flute Hand Tap , 1/2"-20 , Plug , UNF , 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.367 in |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 1/2" |
| Tap Style | Straight Flute |
| Overall Length | 3-3/8 in |
| Number of Flutes | 3 |
| Tap Thread Size | 1/2"-20 |
| Thread Direction | Right Hand |
| Tap Finish | Steam Oxide |
| Tap Thread Type | UNF |
| Number of Pieces | 1 |
| Pitch Diameter Limit | H11 |
| Thread Length | 1.656 in |
| List Number | SFGP+5-SO |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Measurement System | Fractional Inch |
| 55% Thread Drill Size | 11.8 mm |
| 75% Thread Drill Size | 11.4 mm |
| Square Size | 0.275 in |
| Threads per Inch | 20 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| 65% Thread Drill Size | 11.6 mm |
| Series | SPGP+5-SO |
| Spiral Direction | Right Hand |
| Shank Length | 1-23/32 in |
| Primary Material Application ISO Code | N, P |
| Shank Type - Machining | Straight |
| Thread Limit | H11 |
| Drill Bit Size | 29/64 in |
| Thread Size | 1/2"-20 |
| Thread Standard | UNF |
| Class of Fit | 1 B |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
