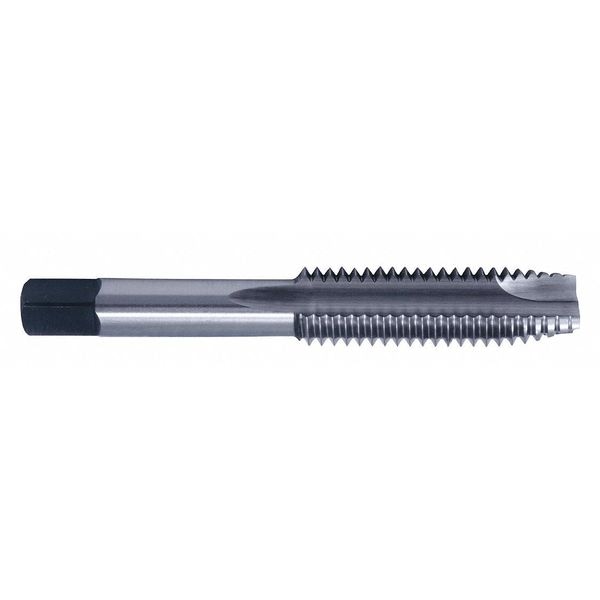

Straight Flute Hand Tap , 3/4"-16 , Plug , UNF , 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.59 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug |
| Tap Size | 3/4" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 4-1/4 in |
| Thread Direction | Right Hand |
| Tap Thread Size | 3/4"-16 |
| Thread Length | 2 in |
| Tap Finish | Steam Oxide |
| Pitch Diameter Limit | H11 |
| List Number | SFGP+5-SO |
| Tap Thread Type | UNF |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Series | SPGP+5-SO |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| 65% Thread Drill Size | 17.7 mm |
| Measurement System | Fractional Inch |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| 75% Thread Drill Size | 17.5 mm |
| 55% Thread Drill Size | 17.9 mm |
| Primary Material Application ISO Code | N, P |
| Thread Standard | UNF |
| Threads per Inch | 16 |
| Thread Limit | H11 |
| Drill Bit Size | 11/16 in |
| Thread Size | 3/4"-16 |
| Square Size | 0.442 in |
| Shank Length | 2-1/4 in |
| Class of Fit | 1 B |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
