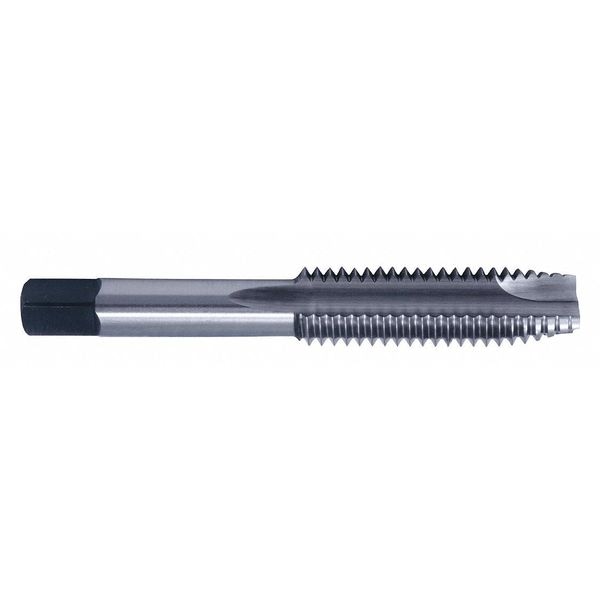

Straight Flute Hand Tap , 5/16"-24 , Plug , UNF , 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.318 in |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | 5/16" |
| Tap Style | Straight Flute |
| Overall Length | 2.719 in |
| Number of Flutes | 3 |
| List Number | SPGP+5 |
| Tap Thread Type | UNF |
| Tap Thread Size | 5/16"-24 |
| Thread Direction | Right Hand |
| Thread Length | 1-1/8 in |
| Tap Finish | Bright |
| Pitch Diameter Limit | H11 |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| 55% Thread Drill Size | 9/32 in |
| Shank Type - Machining | Straight |
| Measurement System | Fractional Inch |
| Thread Standard | UNF |
| 65% Thread Drill Size | J |
| Square Size | 0.238 in |
| Drill Bit Size | I |
| Primary Material Application ISO Code | N, P |
| 75% Thread Drill Size | I |
| Thread Limit | H11 |
| Series | SPGP+5 |
| Threads per Inch | 24 |
| Thread Size | 5/16"-24 |
| Shank Length | 1-19/32 in |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Spiral Direction | Right Hand |
| Extended Neck | Yes |
| Class of Fit | 1 B |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
