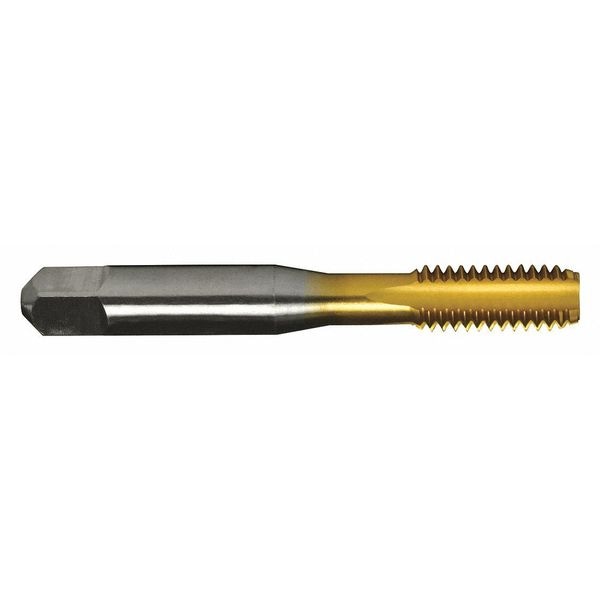

Straight Flute Hand Tap, Bottoming 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | Shank Dia. 0.5900" |
| Tap Material | High Speed Steel |
| Tap Chamfer | Bottoming |
| Tap Size | 3/8" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 2-15/16 in |
| Thread Direction | Right Hand |
| Number of Pieces | 1 |
| Thread Length | 1-1/4 in |
| Pitch Diameter Limit | H5 |
| Tap Finish | TiN |
| List Number | HTGP-TN |
| Tap Thread Size | 3/8"-16 |
| Tap Thread Type | UNC |
| Standards | USCTI Table 302A |
| Cutting Direction - Machining | Right Hand |
| 65% Thread Drill Size | P |
| Thread Size | 3/8"-16 |
| Thread Standard | UNC |
| Tap Length Standard | USCTI |
| Extended Neck | Yes |
| Shank Length | 1-11/16 in |
| Primary Material Application ISO Code | K, P, M |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Class of Fit | 2 B |
| Measurement System | Fractional Inch |
| Spiral Direction | Neutral |
| Thread Limit | H5 |
| Series | HTGP-TN |
| Tap Shank Standard | USCTI |
| Square Size | 0.286 in |
| 55% Thread Drill Size | 8.4 mm |
| Shank Type - Machining | Straight |
| 75% Thread Drill Size | 5/16 in |
| Threads per Inch | 16 |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
