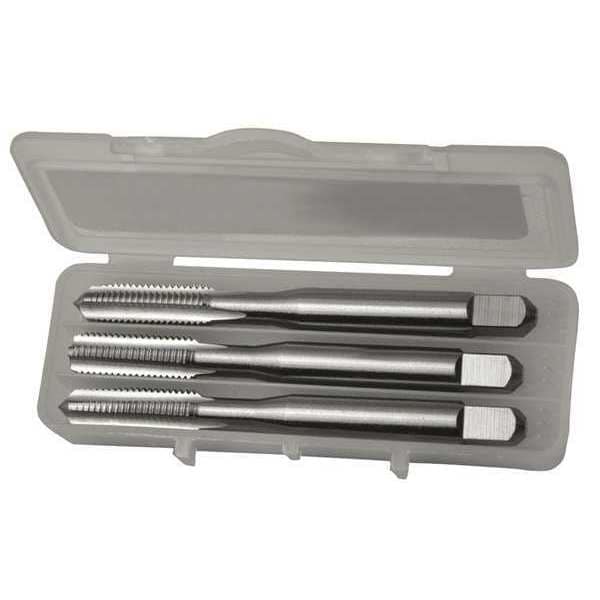

Straight Flute Hand Tap, Bottoming, Plug, Taper 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.255 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug, Taper, Bottoming |
| Tap Size | 1/4" |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 2-1/2 in |
| Thread Direction | Left Hand |
| Number of Pieces | 1 |
| Tap Grouping | Tap Set |
| Tap Finish | Bright |
| Tap Thread Size | 1/4"-28 |
| Standards | USCTI Table 302 |
| Tap Thread Type | UNF |
| List Number | HTGPL |
| Thread Length | 5/8 in |
| Pitch Diameter Limit | H3 |
| Includes | (1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap |
| Cutting Direction - Machining | Left Hand |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Series | HTGPL-3PC |
| Measurement System | Fractional Inch |
| Tap Type | Straight Flute |
| Tap Shank Standard | USCTI Table 302A |
| Number Of Taps | 3 |
| Shank Length | 1-1/2 in |
| Coolant Fed | Non-Coolant Through |
| Square Size | 3/16 in |
| Primary Material Application ISO Code | K, N, P, M |
| Threads per Inch | 28 |
| Thread Standard | UNF |
| Class of Fit | 3 B |
| 75% Thread Drill Size | 5.45 mm |
| Thread Limit | 2B |
| 65% Thread Drill Size | 7/32 in |
| Features | Taper-Plug-Bottoming |
| 55% Thread Drill Size | 5.7 mm |
| Extended Shank | No |
| Package Quantity | 1 |
