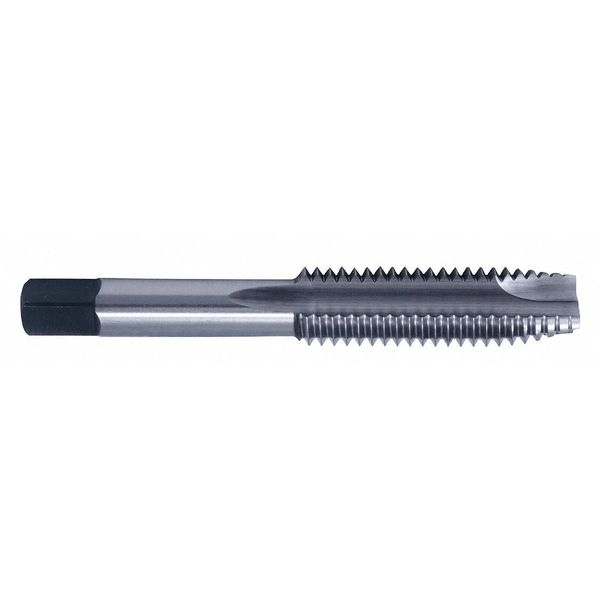

Straight Flute Hand Tap , M16-1.50 , Plug , Metric , 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 12.19 mm |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Tap Size | M16 |
| Tap Style | Straight Flute |
| Overall Length | 96.85 mm |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Tap Finish | Steam Oxide |
| Pitch Diameter Limit | D11 |
| Thread Direction | Right Hand |
| Tap Thread Size | M16-1.50 |
| Thread Length | 46.05 mm |
| Tap Thread Type | Metric |
| List Number | SFGP+5-SO |
| Cutting Direction - Machining | Right Hand |
| 65% Thread Drill Size | 14.7 mm |
| Measurement System | Metric |
| Thread Size | M16x1.5 |
| Drill Bit Size | 14.5 mm |
| Shank Type - Machining | Straight |
| Thread Standard | Metric |
| Thread Pitch | 1.5 mm |
| Square Size | 9.14 mm |
| Extended Neck | Yes |
| Series | SPGP+5-SO |
| Shank Length | 2 in |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Primary Material Application ISO Code | N, P |
| 55% Thread Drill Size | 14.9 mm |
| 75% Thread Drill Size | 14.5 mm |
| Spiral Direction | Right Hand |
| Thread Limit | D11 |
| Class of Fit | 6H |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
