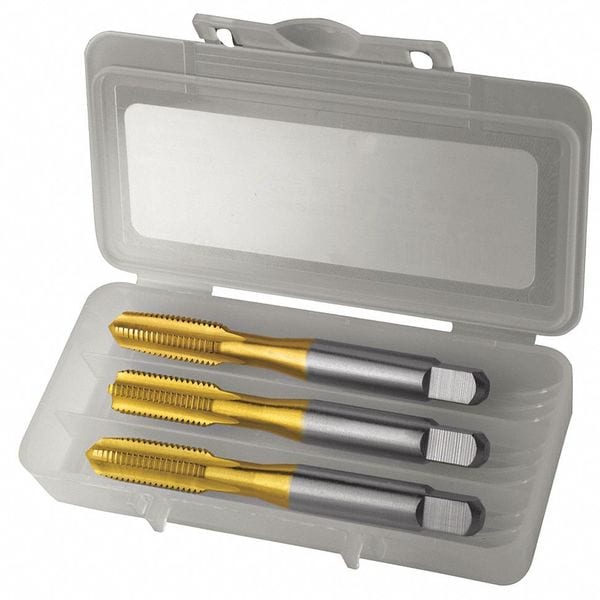

Straight Flute Hand Tap, M8-1.25, Bottoming, Plug, Taper, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 8.07 mm |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug, Taper, Bottoming |
| Tap Size | M8 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Metric |
| Number of Flutes | 4 |
| Overall Length | 69.06 mm |
| Thread Direction | Right Hand |
| Tap Thread Type | Metric |
| Number of Pieces | 3 |
| Standards | USCTI Table 302A |
| Pitch Diameter Limit | D5 |
| Tap Finish | TiN |
| Thread Length | 28.58 mm |
| List Number | HTGP-3PC |
| Tap Thread Size | M8-1.25 |
| Includes | (1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap |
| Cutting Direction - Machining | Right Hand |
| Measurement System | Metric |
| Tap Type | Straight Flute |
| Class of Fit | 6H |
| Thread Pitch | 1.25 mm |
| 75% Thread Drill Size | H |
| Thread Standard | Metric |
| Shank Length | 1-19/32 in |
| Number Of Taps | 3 |
| Thread Limit | 2B |
| 55% Thread Drill Size | 7.1 mm |
| Tap Shank Standard | USCTI Table 302 |
| 65% Thread Drill Size | I |
| Square Size | 6.05 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Series | HTGP-3PC-TN |
| Features | Taper-Plug-Bottoming |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | K, N, P, M |
| Extended Shank | Yes |
| Tap Length Standard | USCTI Table 302 |
| Package Quantity | 1 |
