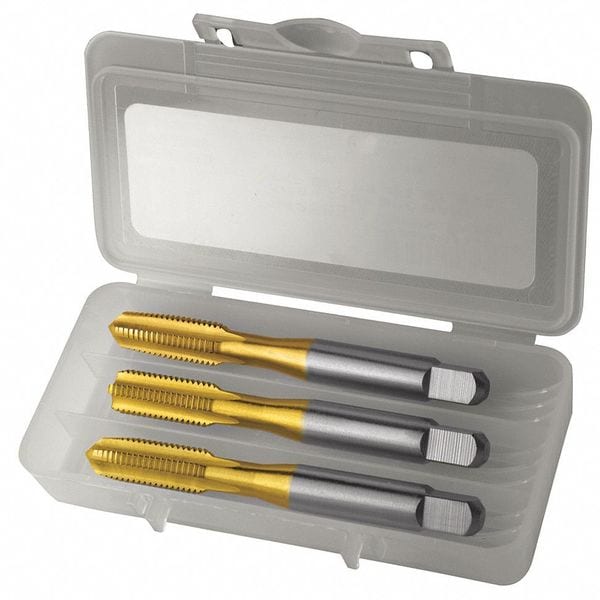

Tap Set, 1/4"-20, Bottoming, Plug, Taper, 4 Flutes, UNC
| Item | Tap Set |
|---|---|
| Overall Length | 2-1/2 in |
| Tap Material | High Speed Steel |
| Tap Finish | TiN |
| Tap Thread Size | 1/4"-20 |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Shank Dia. | 1/4 in |
| Number of Pieces | 3 |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Tap Grouping | Tap Set |
| List Number | HTGP |
| Thread Length | 5/8 in |
| Pitch Diameter Limit | H3 |
| Tap Thread Type | UNC |
| Tap Chamfer | Bottoming, Plug, Taper |
| Thread Standard | UNC |
| Class of Fit | 3 B |
| Thread Limit | 2B |
| Package Quantity | 1 |
