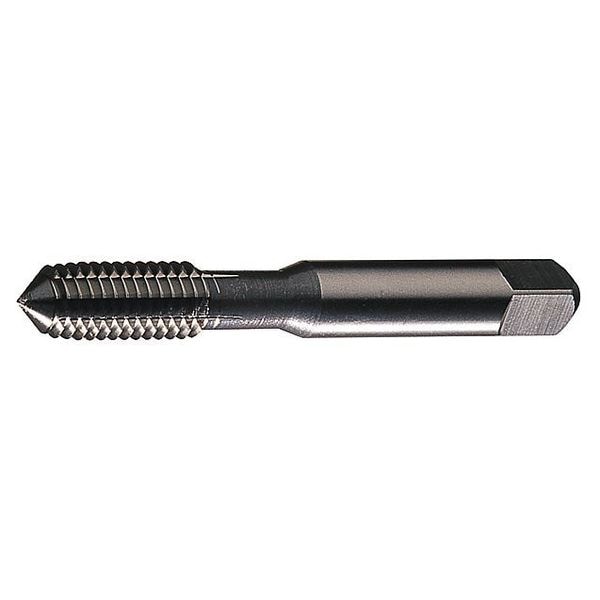

Thread Forming Tap, M4-0.70, Plug, Bright, 0 Flutes
| Item | Thread Forming Tap |
|---|---|
| Tap Thread Size | M4-0.70 |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Number of Flutes | 0 |
| Tap Thread Type | Metric Coarse |
| Thread Direction | Right Hand |
| Standards | USCTI Table 302A |
| Pitch Diameter Limit | D6 |
| Thread Length | 17.53 mm |
| List Number | FTGP |
| Tap Style | Thread Forming |
| Tap Dimension Type | Metric |
| Tap Material | High Speed Steel |
| Overall Length | 53.97 mm |
| Tap Grouping | Tap |
| Shank Dia. | 9.32 mm |
| Tap Size | M4 |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Thread Size | M4x0.7 |
| 65% Thread Drill Size | 3.7 mm |
| Spiral Direction | Neutral |
| Primary Material Application ISO Code | P, N |
| Material Grade - Machining | FTGP |
| Extended Neck | Yes |
| Shank Length | 1-3/8 in |
| 55% Thread Drill Size | #26 |
| Thread Pitch | 0.7 mm |
| Thread Standard | Metric Coarse |
| 75% Thread Drill Size | 3.65 mm |
| Series | FTGP |
| Square Size | 3.33 mm |
| Primary Material Application | Brass, Copper, Bronze, Aluminum, Steel |
| Thread Limit | D6 |
| Class of Fit | 6H |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
