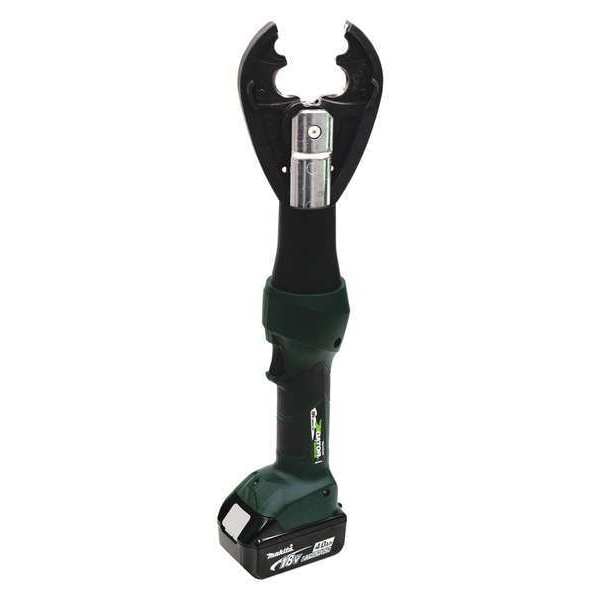

18-1/2" Cordless Crimping Tool Kit
| Handle Type | Inline |
|---|---|
| Capacity | Connector 10 to 1/0 AWG 5/8" Service Entrance Connectors, 1/0 to 4/0 AWG 0.840 Service Entrance Connectors, 6 to 4/0 AWG Aluminum H Taps, 10 to 2 AWG Copper H Taps, 6 to 2/0 AWG Copper Tension Splices, 6 to 4/0 AWG All Aluminum Tension Splices, 4 to 1/0 AWG One Piece ACSR; 12,000 lb. |
| Overall Length | 14-3/4 in |
| Head Style - Crimper | Scissor |
| Battery Capacity | 4 Ah |
| Corded/Cordless | Cordless |
| Battery Type | Li-Ion |
| Crimping Force | 6 ton |
| Primary Application - Crimping | Electrical Wire and Cable Crimping |
| Item | Cordless Crimping Tool Kit |
| Capacity Copper Lug - Crimper | 6 to 2/0 AWG |
| Handle Material | Rubber |
| Voltage | 18 V |
| Crimping Die Series | Greenlee Series KA4, KC4, KD4 |
| Rotating Angle (Deg.) | 350 |
| Includes - Cordless Crimper | (1) Battery Charger - 120V, (1) Tool Storage - Bucket Pouch, (2) Batteries |
| Corded/Banded | Cordless |
| Auto-Cycle | Yes |
| Max. Crimping Force - Crimper | 6 ton |
| Cordless Tool Battery Type | Li-Ion |
| Includes | (2) Batteries, 120V Charger, Bucket Pouch, Crimping Jaws |
| Approximate Cycle Time | 4 sec |
| Capacity Aluminum Lug - Crimper | 6 to 4/0 AWG |
| Application | 6 Ton Crimping |
| Series | Gator |
| Standards | cULus Listed |
| Features | Bluetooth Enabled, LED Display with Real Time Psi Reading, LED Work Light Illuminates Dark Work Areas, One Trigger Controls All Tool Functions, Spring Pin Jaw Engagement, Visual and Audible Alert in Real Time If Crimp Force is Not Achieved |
| Overall Width | 4 in |
| Tool Weight | 6.6 lb |
| Cycle Time | 4 sec |
| Wireless Tool Tracking | No |
| Compatible Connector Type | Aluminum "H" and Copper "H" Tap Connectors, Color-Coded Lugs and Splices, Jumper Splices, Service Entrance Connectors, Stirrups, Tension Splices |
| Grip Material | Rubber |
| Minimum Compatible Wire/Cable Diameter | 2 AWG |
| Maximum Aluminum Lug Crimping Capacity | 6 AWG |
| Maximum Copper Lug Crimping Capacity | 6 AWG |
| Includes Batteries | Yes |
| Includes Charger | Yes |
| Tool Series | Gator |
| Cordless Tool Kit Contents | Charger, (2) Batteries, Bare Tool |
| UL 486A-B Connection Capability | Not Applicable |
| Crimping Capacities | 1/0 to 4/0 AWG 0.840 Service Entrance Connectors, 10 to 2 AWG Copper H Taps, 4 to 1/0 AWG One Piece ACSR, 6 to 2/0 AWG Copper Tension Splices, 6 to 4/0 AWG Aluminum Tension Splices, 6 to 4/0 AWG Aluminum H Taps, Connector 10 to 1/0 AWG 5/8 in Service Entrance Connectors |
| Wireless Technology | Not Applicable |
| Crimp Head Type | Die |
| Number of Batteries Included | 2 |
| Head Style | Scissor |
| Number of Dies Included | 0 |
| Compatible Die Type | BG, D3 |
| Battery Platform | Makita 18V LXT |
| Head Rotation | 350 deg |
| Minimum Aluminum Lug Crimping Capacity | 8 AWG |
| Die Sizes included | BG, D |
| Compatible Wire/Cable Type | ACSR |
| Minimum Copper Lug Crimping Capacity | 10 AWG |
| Power Source | Cordless |
| Package Quantity | 1 |
