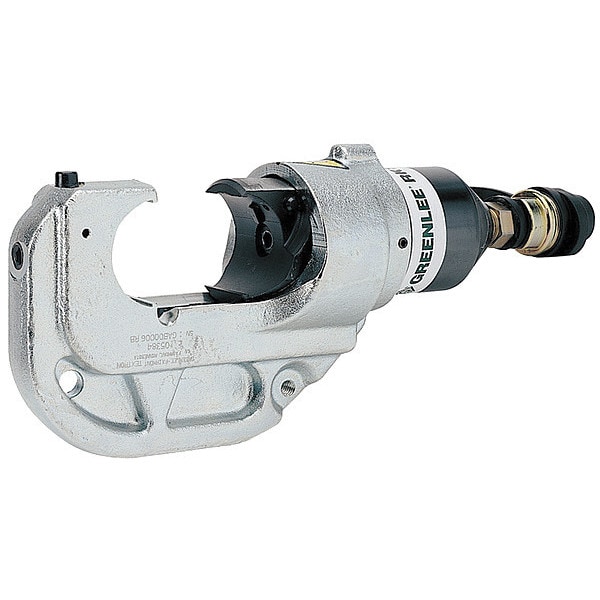

Crimper, Hydraulic, 750 kcmil Cap, 12 Ton
| Item | Remote Powered Crimping Head |
|---|---|
| Capacity | 750 kcmil |
| Application | For Crimping Wire and Cable |
| Features | Crimping Head has 1.65" (42 mm) Opening; Boss Included on Each Crimping Head for use with Hotsticks; Single-Acting Tools Require an External Hydraulic Pump Capable of 10,000 psi (700 bar); Capable of Crimping a Wide Range of Lugs, C-taps, H-Taps and Overhead Tension Sleeves; Includes: Carrying Case |
| Jaw Width (In.) | 1 |
| For Use With | External Hydraulic Pump |
| Jaw Length (In.) | 1.65 |
| Head Style - Crimper | C-Head |
| Length (In.) | 11-7/8 |
| Primary Application - Crimping | Electrical Wire and Cable Crimping |
| Max. Hydraulic Pressure - Crimping Head | 10,000 psi |
| Crimping Force (Lbs.) | 24,000 |
| Crimping Die Series | Greenlee Series KA12, KC12, KD12, U Style |
| Length - Remote Head | 11-7/8 in |
| Type | Remote Powered |
| Capacity Copper Lug - Crimper | 8 AWG to 750 kcmil |
| Ram Type - Crimping Head | Single Acting |
| Max. Crimping Force - Crimper | 12 ton |
| Max. Crimping Force (Tons) | 12.0 |
| Includes | Carrying Case, Crimping Head Boss |
| Standards | cULus Listed |
| Tool Weight | 9.7 lb |
| Tool Length | 11-7/8 in |
| Minimum Copper Lug Crimping Capacity | 8 AWG |
| Compatible with Brand | Greenlee |
| Ram Type | Single Acting |
| Product Type | Remote Hydraulic Crimping Tool |
| Maximum Operating Pressure | 10,000 psi |
| Tool Series | Not Applicable |
| Minimum Operating Pressure | 10,000 psi |
| Tool Width | 2-7/8 in |
| Maximum Crimping Force | 12 ton |
| Head Style | C-Head |
| Pressure Port | 3/8 in Male Screw-Type Coupler |
| UL 486A-B Connection Capability | Not Applicable |
| Minimum Operating Flow Rate | Not Applicable |
| Maximum Aluminum Lug Crimping Capacity | 750 kcmil |
| Compatible Die Type | U Die |
| Maximum Copper Lug Crimping Capacity | 750 kcmil |
| Minimum Aluminum Lug Crimping Capacity | 8 AWG |
| Tool Height | 5 in |
| Maximum Operating Flow Rate | Not Applicable |
| Return Port | Not Applicable |
| Package Quantity | 1 |
