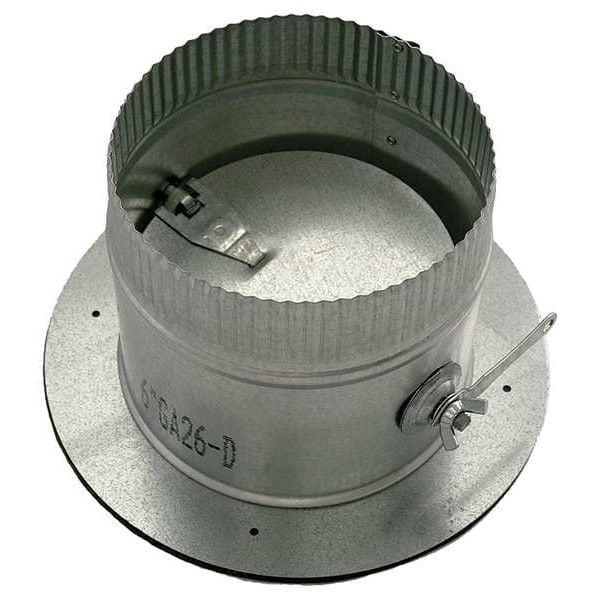

Duct Collar w/Damper, 14 in 6 in H
| Item | Duct Collar w/Damper |
|---|---|
| Material | Galvanized Steel |
| Color | Silver |
| Duct Fitting Length | 5 in |
| Duct Fitting Item | Collar with Damper |
| Special Features | Pre-sealed / Low Leakage Hardware |
| Width | 14 in |
| Gauge | 26 ga |
| Pressure Rating | 3 in W.G |
| Duct Fitting Diameter | 12 in |
| Height | 6 in |
| Duct Fitting Duct Size | 12 in |
| Standards | ASTM A653, ASTM A924, SMACNA Class 3 |
| For Use With | Greenseam Duct system |
| Coating | Galvanized |
| Construction Material | Galvanized Steel |
| Duct Fitting Material | Galvanized Steel |
| Inlet Diameter | 12 in |
| Outlet Diameter | 12 in |
| Duct Size | 12 in |
| Type | Press-On Collar with Damper |
| Overall Length | 5 in |
| Overall Width | 14 in |
| Finish | Galvanized |
| Overall Height | 6 in |
| Minimum Pressure Rating | 3 in wc |
| Outside Diameter | 12 in |
| Flange Outside Diameter | 1 in |
| Seal Material | Co-Polymer, EPDM |
| End Type | Crimped |
| Flange Inside Diameter | 12 in |
| Damper Type | Low Leakage |
| For Duct Shape | Round |
| For Duct Height | 6 in |
| Weight | 3.69 lb |
| Flange Outer Diameter | 1 in |
| Material Thickness | 26 ga |
| Bolt Circle Diameter | Not Applicable |
| Gas Appliance Category | Not Applicable |
| For Duct Width | 12 in |
| For Nominal Duct Diameter | 12 in |
| Product Type | Press-on Collar |
| Maximum Pressure Rating | 3 in wc |
| Material Fabrication | Spun |
| Shape | Round |
| Connection Type | Press Fit |
| Inside Diameter | 12 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
