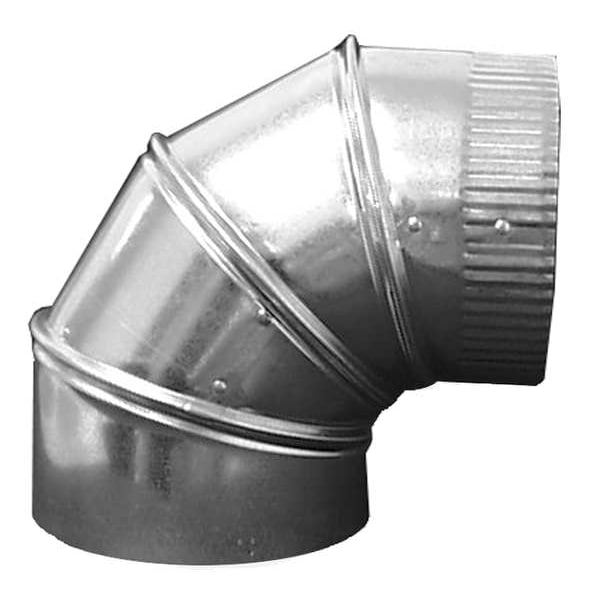

Curva de codo de 90 grados, diámetro de conducto de 5 pulgadas, acero galvanizado, calibre 24, 6 3/4 pulgadas de ancho, 8 pulgadas de largo, 6 3/4 pulgadas de altura.
| Duct Fitting Duct Size | 5" |
|---|---|
| Width | 6-3/4 in |

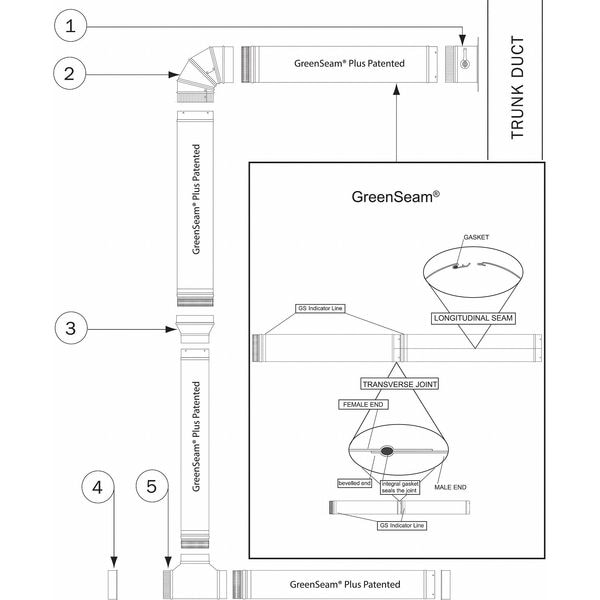

| For Use With | Greenseam Duct system |
| Gauge | 24 ga |
| Height | 6-3/4 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 5 in |
| Length | 8 in |
| Coating | Galvanized |
| Outlet Diameter | 5 in |
| Pressure Rating | 3 in W.G |
| Item | 90 Degree Elbow |
| Damper Shape | Round |
| Duct Fitting Diameter | 5 in |
| Special Features | Adjustable |
| Duct Fitting Length | 8 in |
| Standards | A924, ASTM A653 |
| Duct Fitting Item | 90 Degree Elbow |
| Duct Fitting Material | Galvanized Steel |
| Material | Galvanized Steel |
| Overall Height | 6-3/4 in |
| Finish | Galvanized |
| Color | Silver |
| Overall Width | 6-3/4 in |
| Type | 90 Degrees Elbow |
| Overall Length | 8 in |
| Maximum Airflow | Not Applicable |
| End Type | Crimped |
| Compatible with Brand | Greenseam |
| Connection Type | Press Fit |
| Angle | 90 deg |
| Minimum Pressure Rating | -1 in wc |
| Material Thickness | 24 ga |
| Maximum Pressure Rating | 2 in wc |
| Shape | Elbow |
| Number of Pieces | 4 |
| Product Type | Elbow |
| For Duct Width | 1-5/8 in |
| Centerline Radius | 5-1/2 in |
| Weight | 1.06 lb |
| For Duct Shape | Round |
| For Duct Height | 1-5/8 in |
| Inside Diameter | 5 in |
| Seal Material | Not Applicable |
| For Nominal Duct Diameter | 5 in |
| Gas Appliance Category | Not Applicable |
| Package Quantity | 1 |
