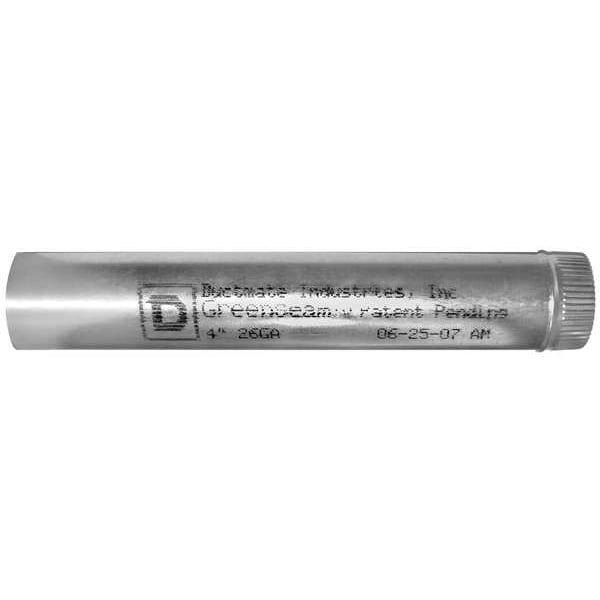

Tubo redondo con cierre de presión, de 5 pulgadas de diámetro para conductos, de acero galvanizado de calibre 26, con un ancho de 5 pulgadas, longitud de 60 pulgadas y altura de 5 pulgadas.
| Duct Fitting Duct Size | 5" |
|---|---|
| Width | 5 in |
| For Use With | Greenseam Duct system |
| Gauge | 26 ga |
| Height | 5 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 5 in |
| Length | 60 in |
| Coating | Galvanized |
| Outlet Diameter | 5 in |
| Pressure Rating | 3 in W.G |
| Item | Rigid Ducts |
| Damper Shape | Round |
| Duct Fitting Diameter | 5 in |
| Standards | ASTM A653 and A924, SMACNA Seal Class A |
| Duct Fitting Item | Snap Lock Pipe |
| Duct Fitting Length | 60 in |
| Special Features | Pre-Sealed, Self Sealing |
| Duct Fitting Material | Galvanized Steel |
| Material | Galvanized Steel |
| Finish | Galvanized |
| Overall Length | 60 in |
| Color | Black |
| Type | Snap Pipe |
| Maximum Pressure Rating | 3 in wc |
| Seal Material | Co-Polymer, EPDM |
| Shape | Straight |
| Material Thickness | 26 ga |
| End Type | Plain, Crimped |
| Maximum Temperature Rating | 212 deg F |
| Inside Diameter | 5 in |
| Product Type | Rigid Duct |
| For Nominal Duct Diameter | 5 in |
| Weight | 33.3 lb |
| Maximum Airflow | Not Applicable |
| Minimum Temperature Rating | -40 deg F |
| Connection Type | Press Fit |
| Package Quantity | 5 |
