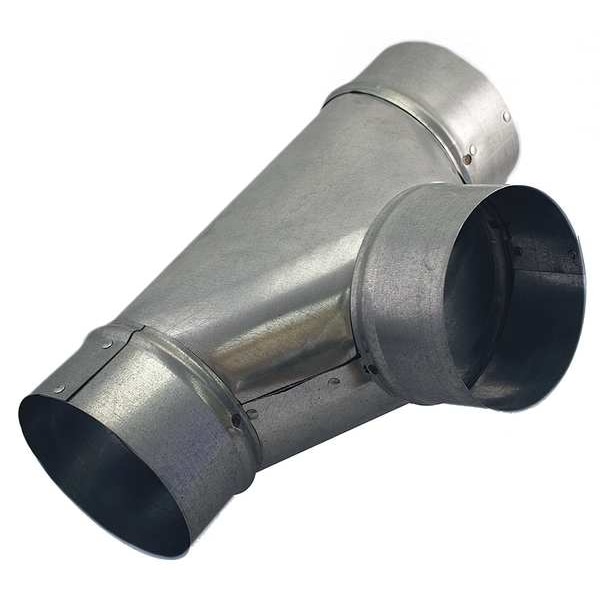

Tee redondo de 9 pulgadas de diámetro para conducto, fabricado en acero galvanizado calibre 24. Con dimensiones de 16 3/4 pulgadas de ancho, 16-3/4 pulgadas de largo y 13 1/2 pulgadas de alto.
| Duct Fitting Duct Size | 9" |
|---|---|
| Width | 16-3/4 in |

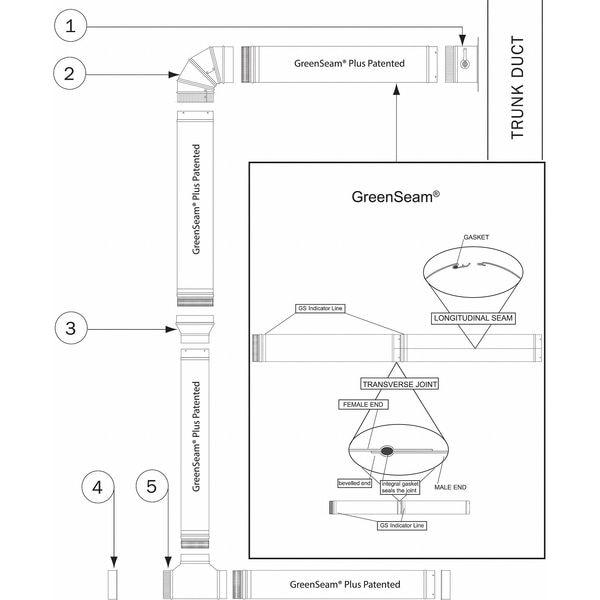

| For Use With | Greenseam Duct system |
| Gauge | 24 ga |
| Height | 13-1/2 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 9 in |
| Length | 16-3/4 in |
| Coating | Galvanized |
| Outlet Diameter | 9 in |
| Pressure Rating | 3 in W.G |
| Item | Duct Tee |
| Damper Shape | Round |
| Duct Fitting Diameter | 9 in |
| Duct Fitting Length | 16-3/4 in |
| Special Features | Sealed |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Item | Tee |
| Standards | ASTM A653 and A924, ASTM A653 and ASTM A90, SMACNA Third Edition 2005, Section |
| Material | Galvanized Steel |
| Finish | Galvanized |
| Overall Height | 13-1/2 in |
| Color | Silver |
| Overall Width | 16-3/4 in |
| Overall Length | 16-3/4 in |
| Type | Tee |
| Material Thickness | 24 ga |
| For Duct Shape | Round |
| Seal Material | Co-Polymer, EPDM |
| Product Type | Tee |
| End Type | Plain, Crimped |
| Compatible with Brand | LEED |
| Minimum Pressure Rating | 3 in wc |
| For Duct Height | 9 in |
| Maximum Temperature Rating | 212 deg F |
| Gas Appliance Category | Not Applicable |
| Inside Diameter | 9 in |
| For Duct Width | 8-3/8 in |
| For Nominal Duct Diameter | 9 in |
| Maximum Pressure Rating | 3 in wc |
| Maximum Airflow | Not Applicable |
| Shape | Tee |
| Weight | 1 lb |
| Connection Type | Press Fit |
| Package Quantity | 1 |
