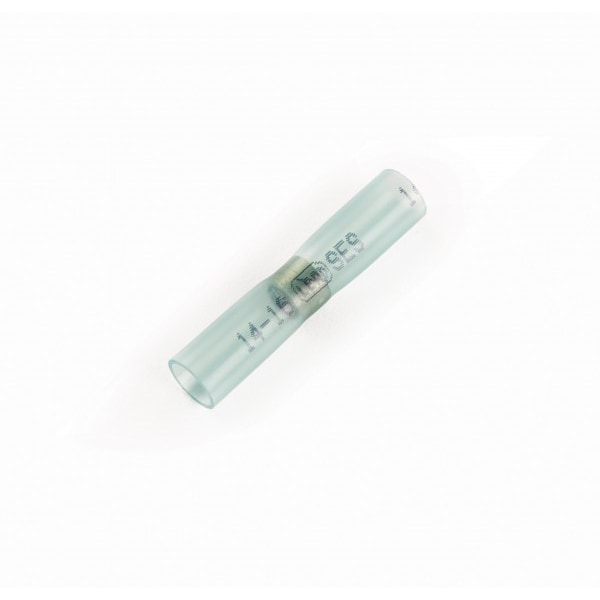

Terminal de empalme de soldadura, calibre 16-14, paquete con 100 unidades.
| Item | Butt Splice Connector |
|---|---|
| Insulation Type | Heat Shrink |
| Insulation Material | Polyolefin |
| Connection Type | Heat Shrink, Solder |
| Insulation Color | Blue |
| Overall Length | 1.61 in |
| Standards | CSA-RU, RoHS Compliant, UL |
| Termination Style | Solder |
| Special Features | Completely Insulates and Protects Electrical Connections, Lead-Free Solder has Greater Surface Tension, Protects against Added Vibration in Rugged Environments, Protects Splices from Water, Corrosion, Salt and Moisture, Provides Strain Relief |
| Contact Finish | Tin |
| Seam Style | Soldered |
| Minimum Operating Temperature | -67 deg F |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 230 deg F |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 16 AWG |
| Maximum Voltage | 600 V |
| Package Quantity | 100 |
