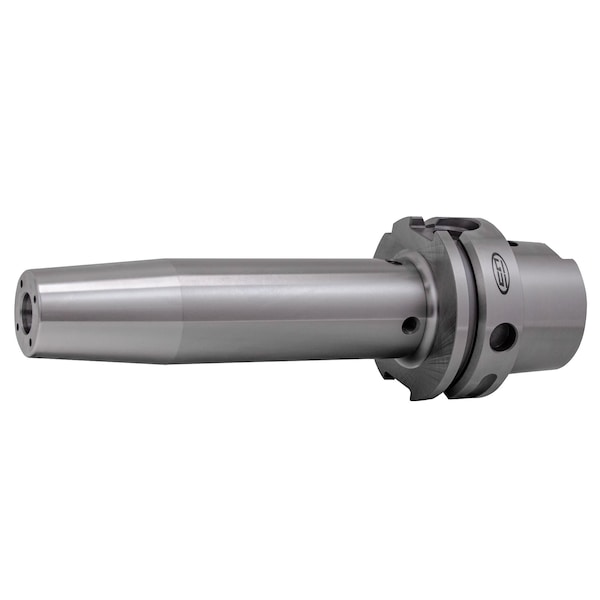

HSK100A 12 x 374 Shrink Fit Holder With Coolant Ports
| Taper Size | HSK100A |
|---|---|
| Hole Dia. | 1/2 in |
| Projection | 3.74 in |
| Coolant Through | Yes |
| Features | Holders are balanceable with a balancing machine, Balanced to G2.5 at 30,000rpm, 4 threaded Coolant ports in the nose, can be closed with a 3mm set screw, Maximum gripping power with exceptional concentricity, TIR 0.0001 in / 0.003mm, AT2 Taper Accuracy, Tool is gripped 360° along the entire length of bore resulting in an evenly distributed clamping force, The hot hardness (hot strength) of H13 resists thermal fatigue cracking which occurs as a result of cyclic heating and cooling cycles, RFID chip hole. |
| Material | H13 Tool Steel |
| Nose Diameter | 1.06 in |
| Shank Type | Taper Shank |
| Accuracy | Concentricity of 0.0001 in (3µm) with tool shrunk in holder. |
| Package Quantity | 1 |
