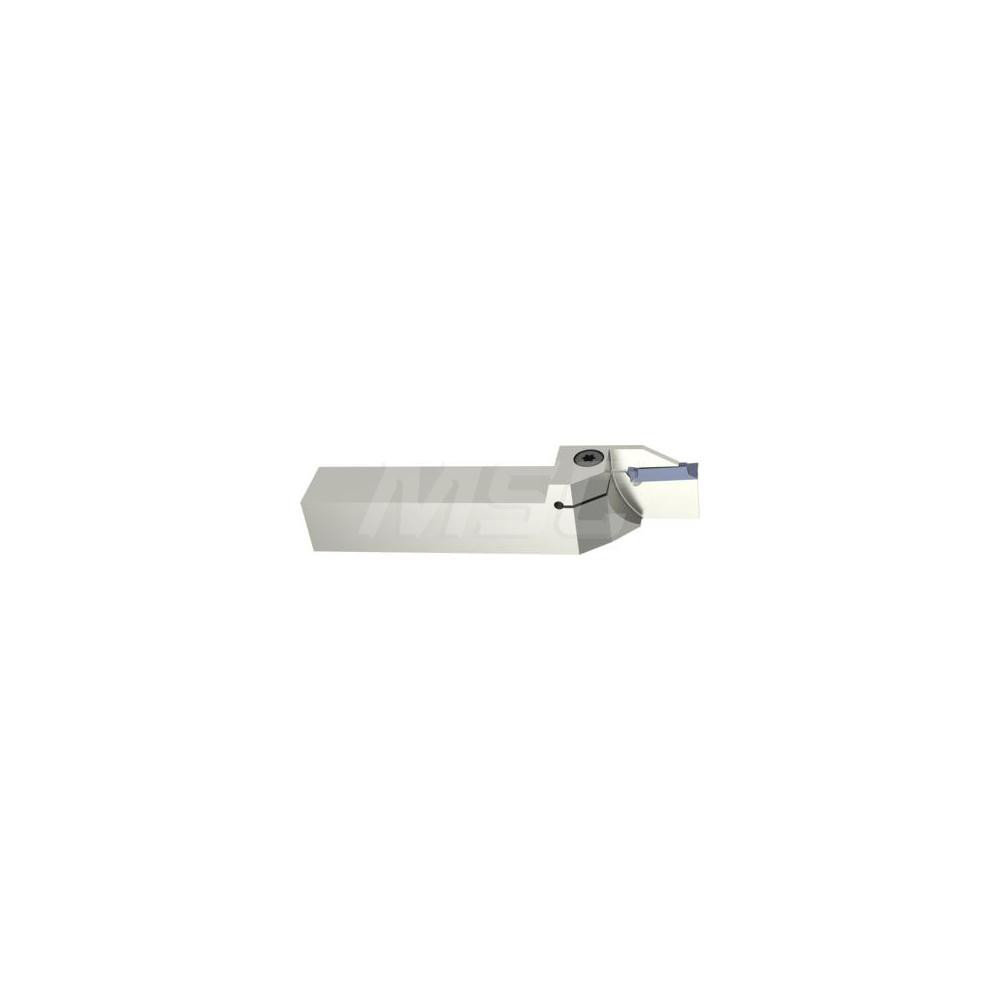

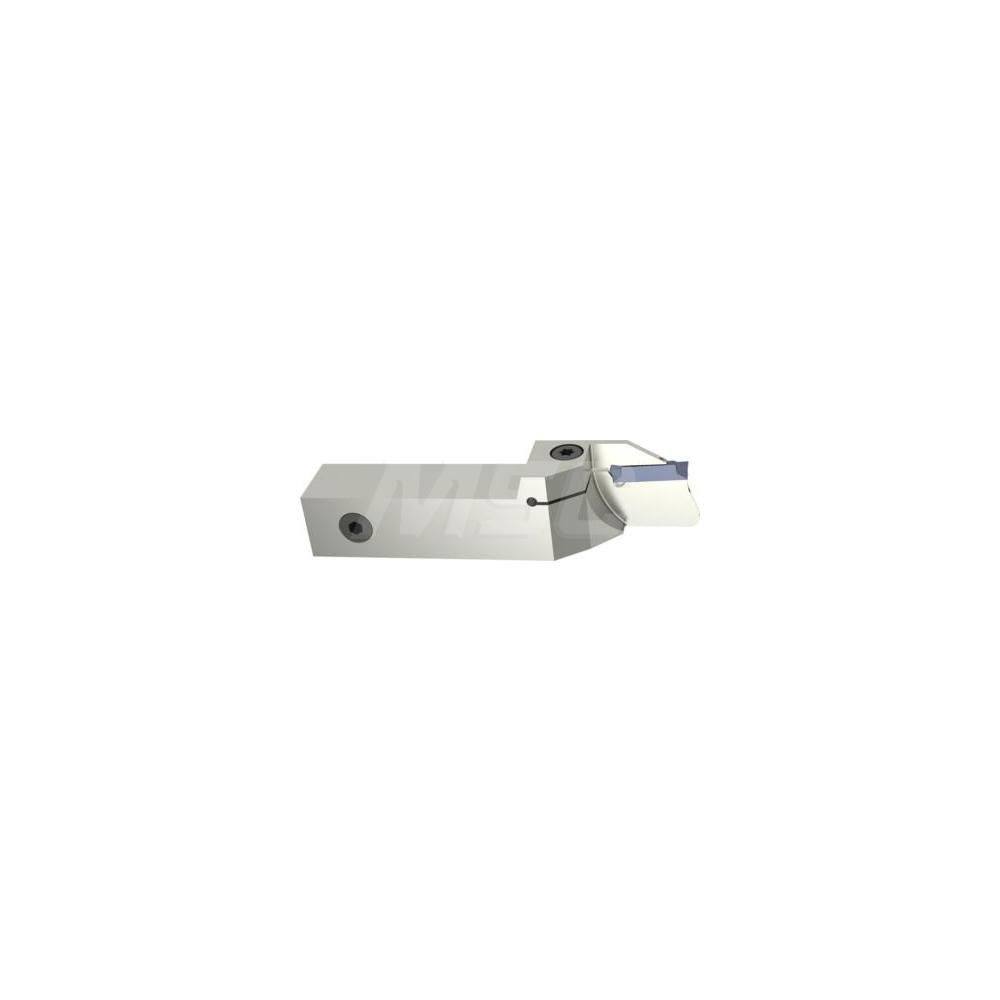

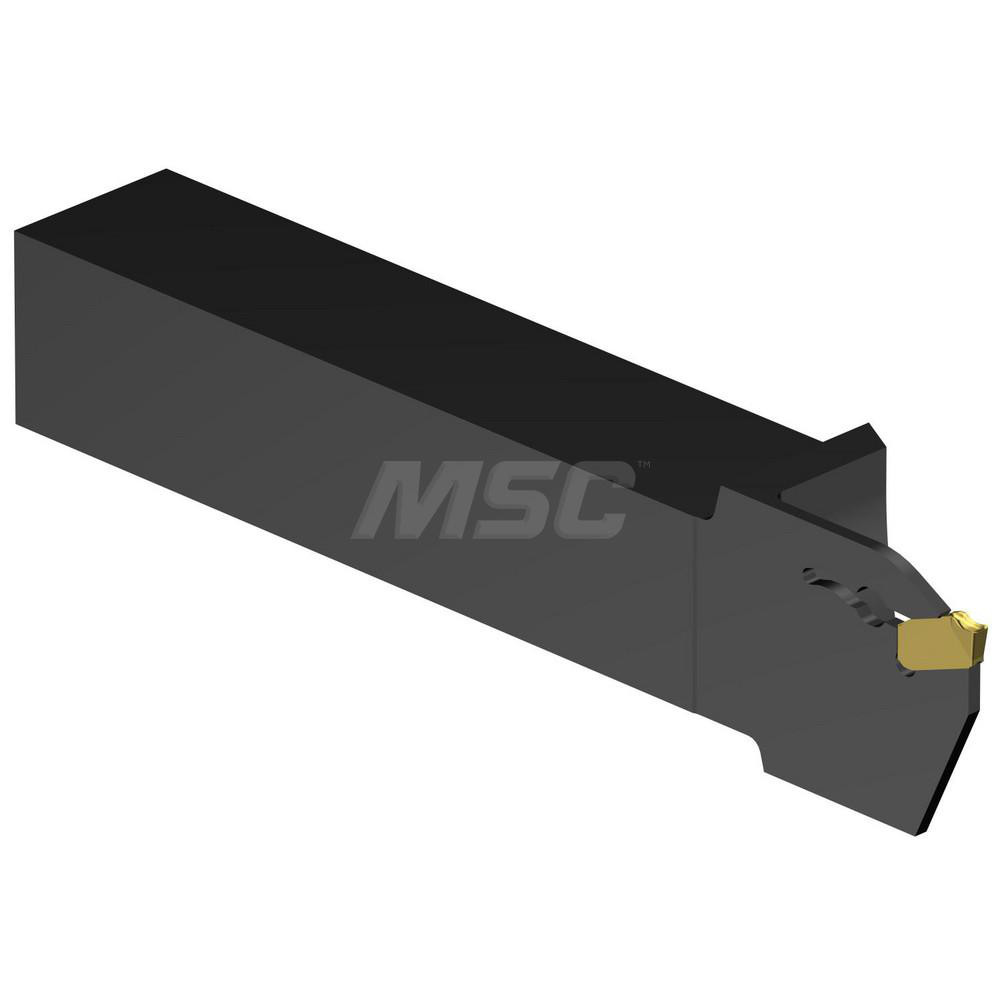

1.0236" Max Depth of Cut, 1 x 1" Shank
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2.25 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | GH222 |
| Insert Compatibility | GZ222 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | 26101 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0472 |
| UNSPSC Code | 23153308 |
| Vibration Dampening | No |
| Mount Type | Shank |
| Manufacturers Catalog Number | GH222.1000.600.00.03.L.00.52 |
| Coolant Through | No |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 13253299 |
