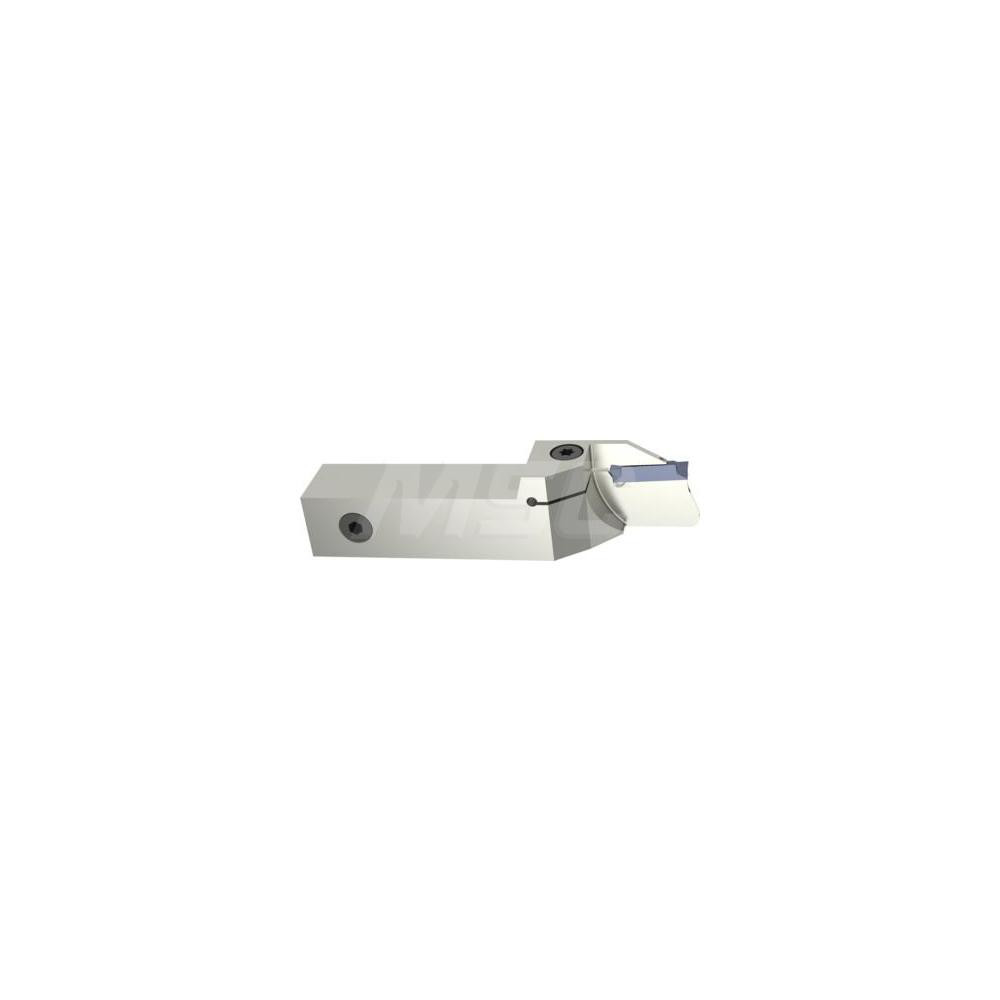

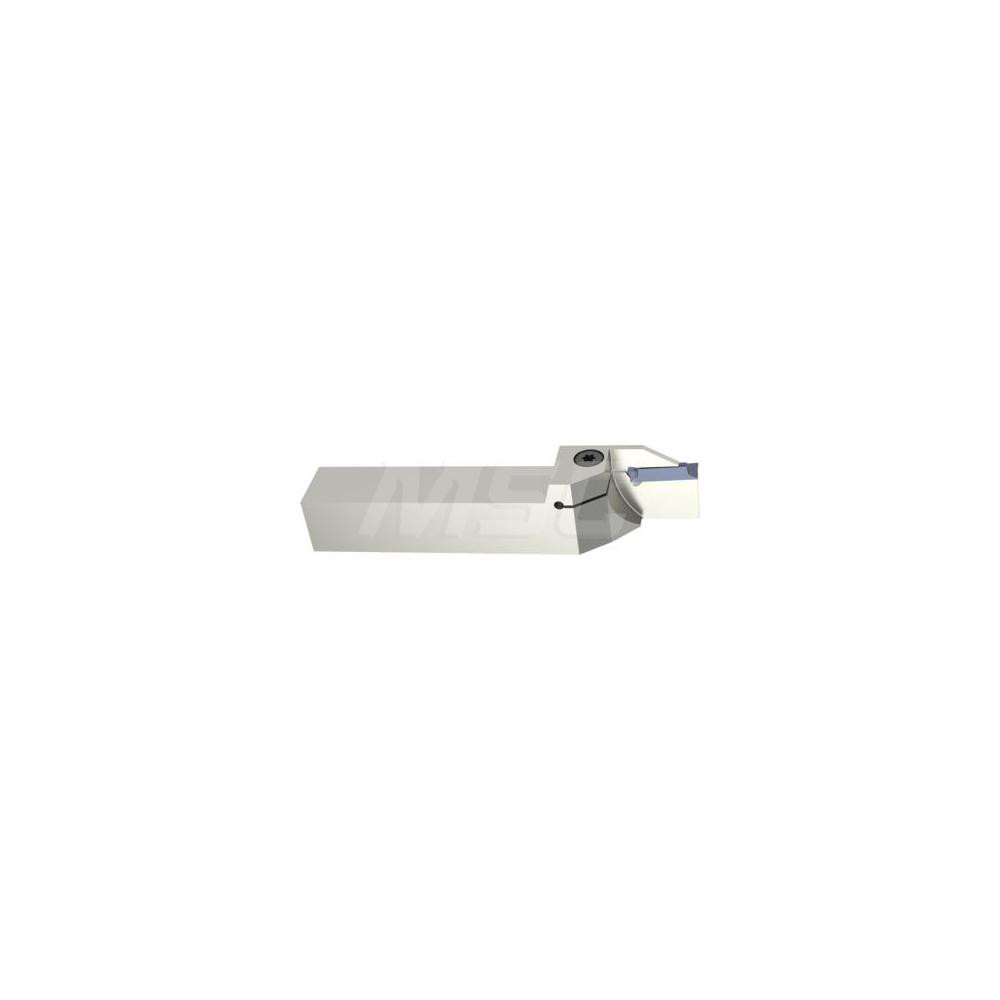

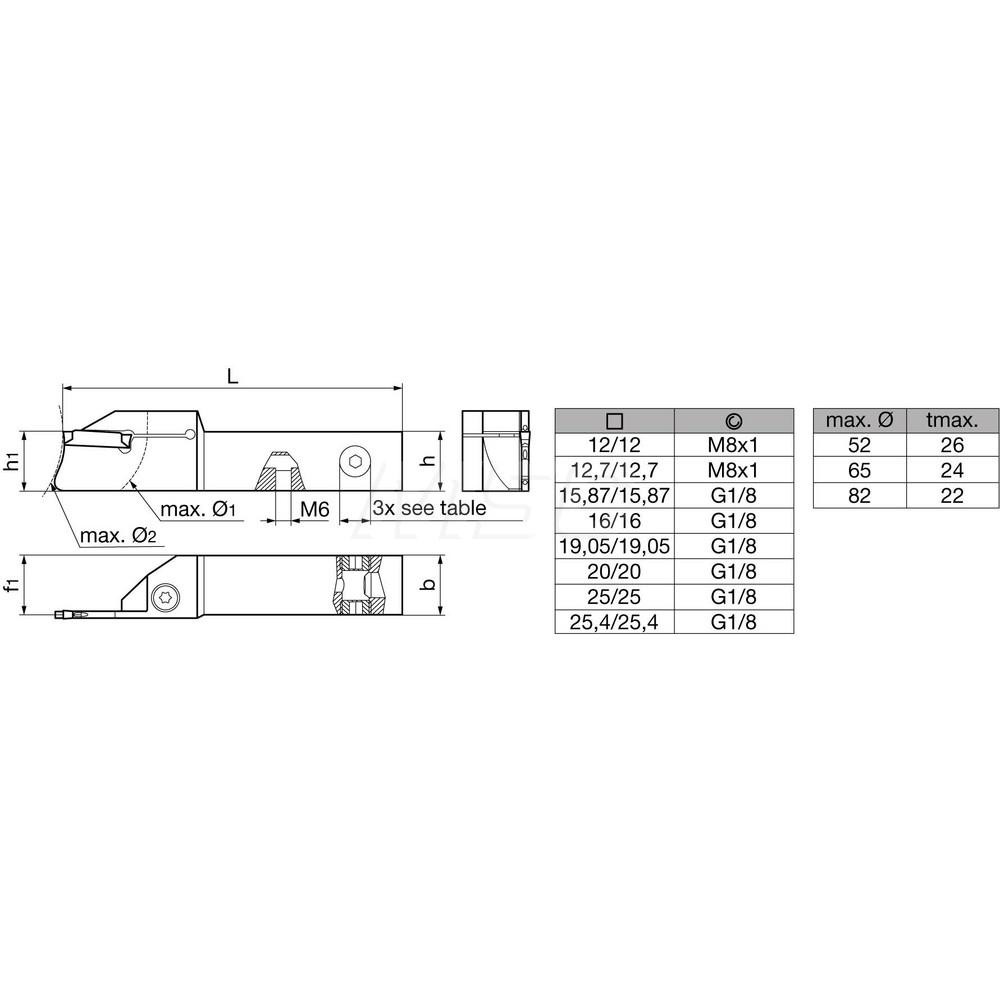

26 mm Max Depth of Cut, 20 x 20 mm Shank, Through Coolant
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2.25 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | GH222 |
| Insert Compatibility | GZ222 |
| Shank Height (mm) | 20.00 |
| Series | 26102 |
| Overall Length (mm) | 109 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (mm) | 52.00 |
| UNSPSC Code | 23153308 |
| Vibration Dampening | No |
| Mount Type | Shank |
| Manufacturers Catalog Number | GH222.2020.109.00.03.R.IK.52 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 13252721 |
