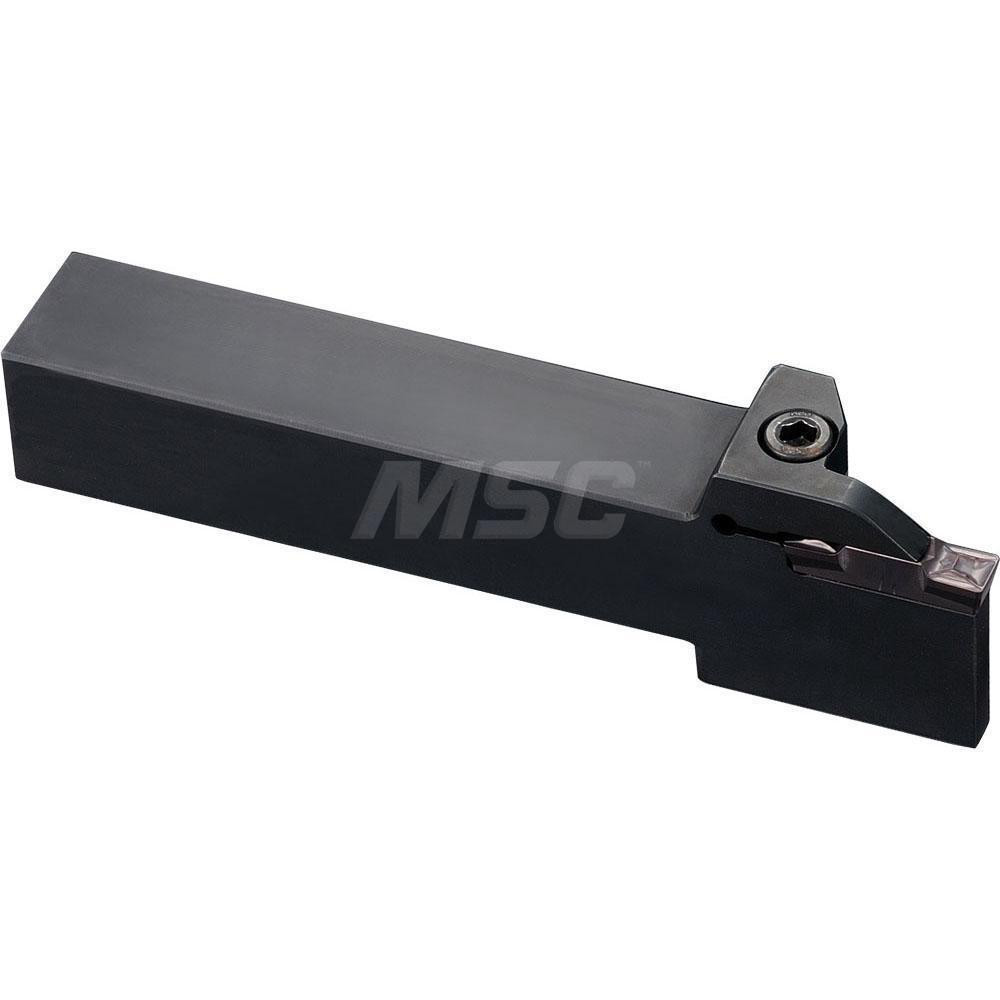

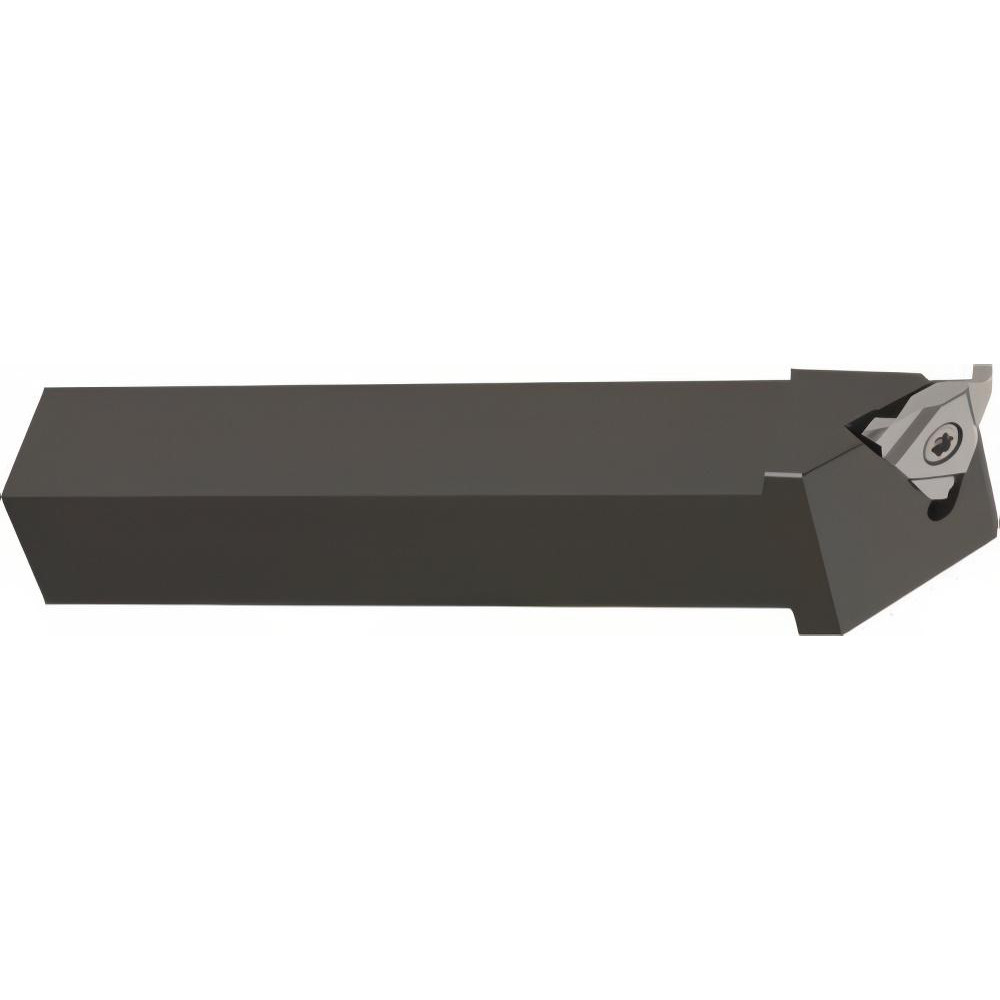

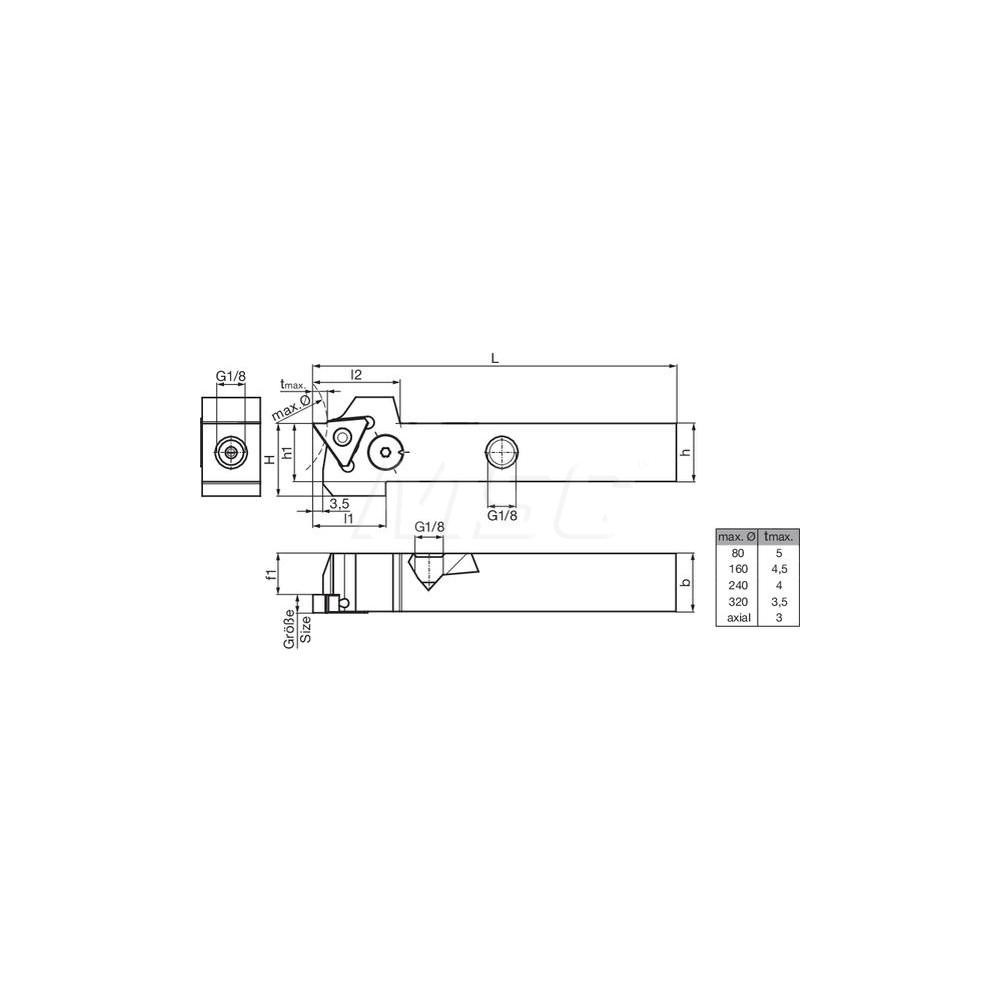

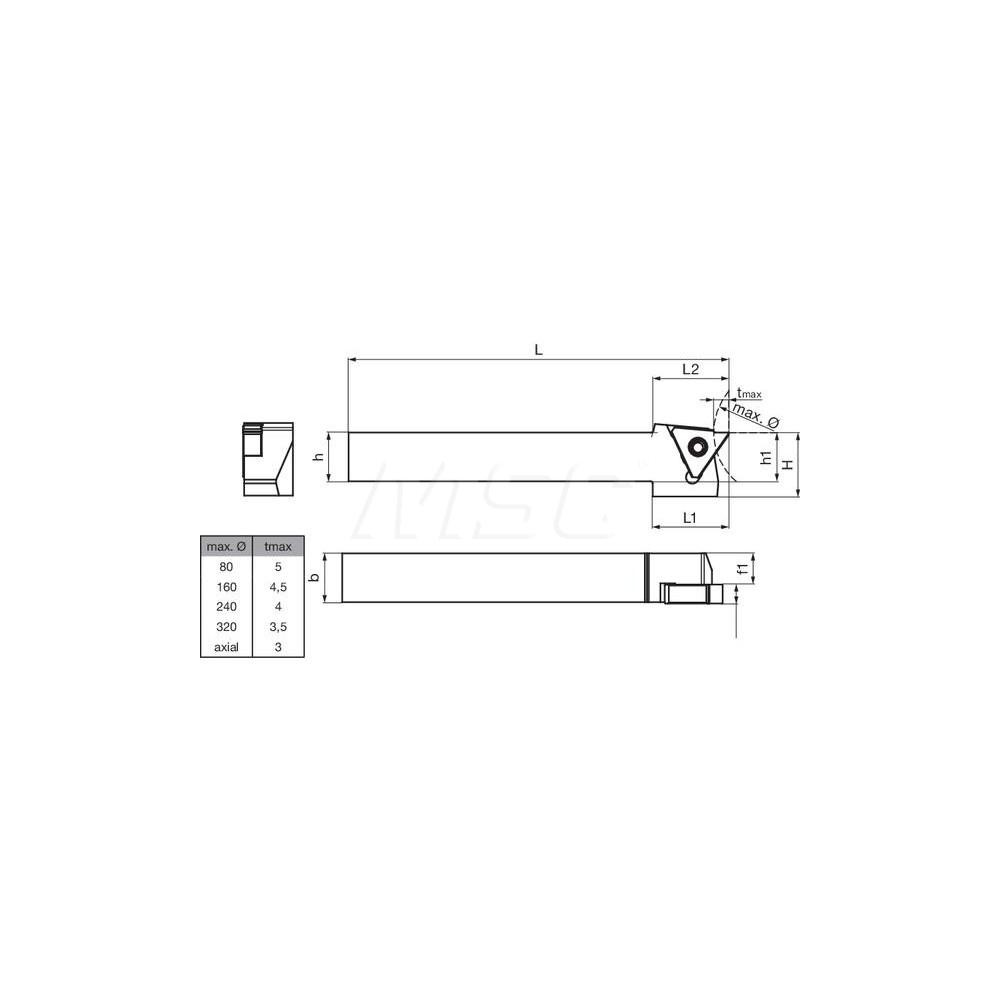

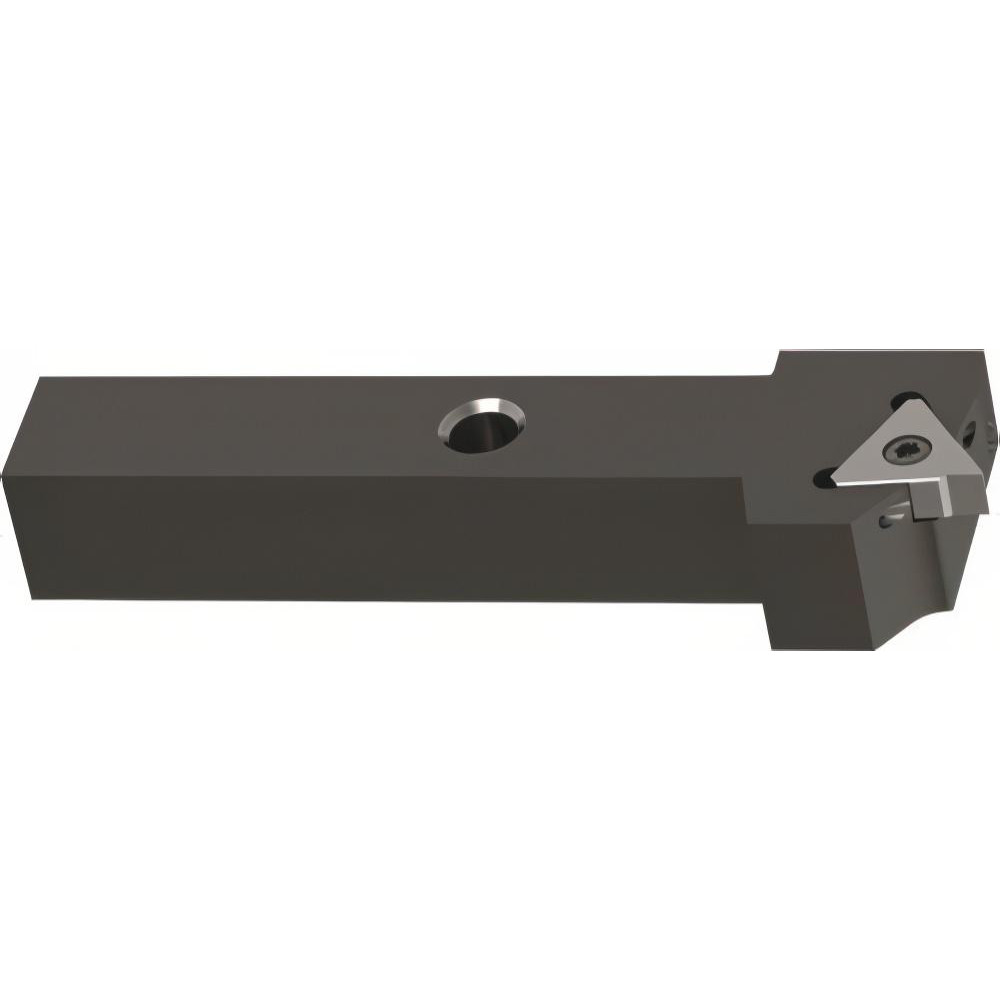

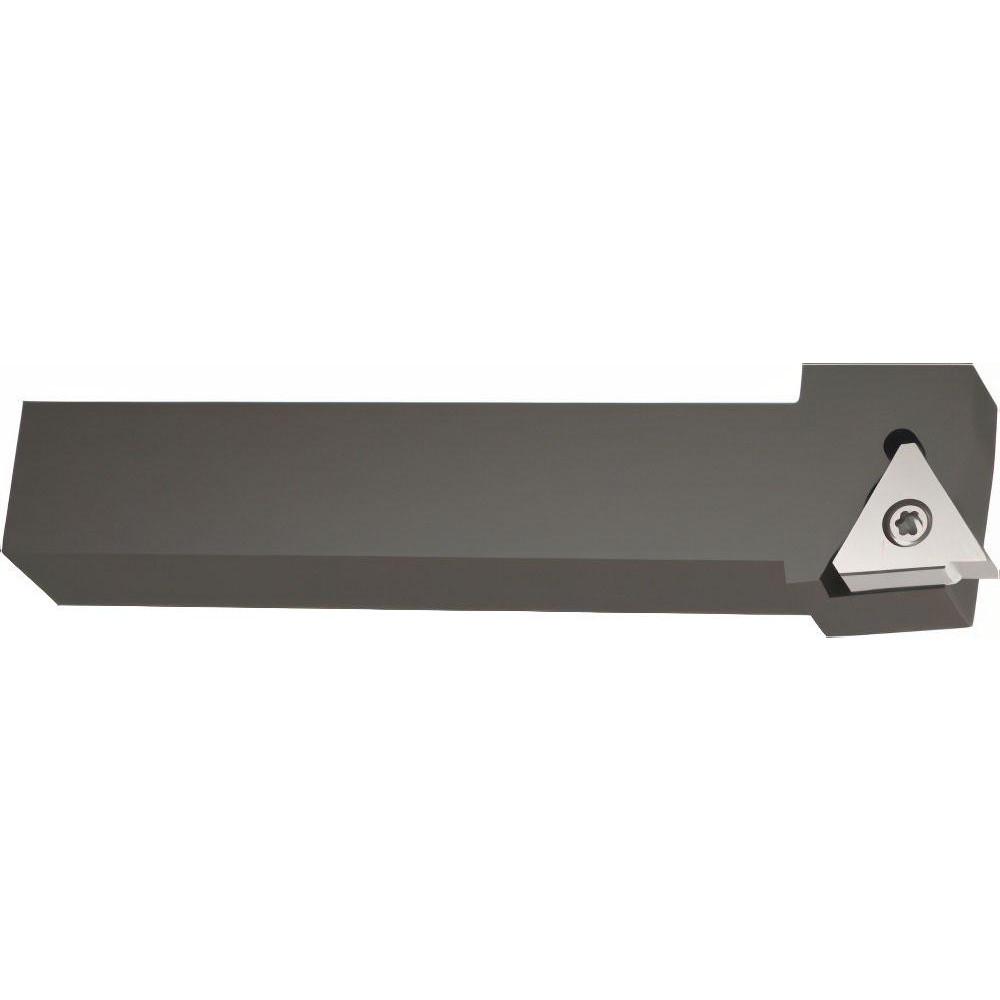

1 x 1" Shank, Through Coolant
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 4 |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Toolholder Style | GH 305 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Insert Compatibility | GE 305; GZ305 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | 25372 |
| Overall Length (Decimal Inch) | 5.9843 |
| Multi-use Tool | Yes |
| Head Height (Decimal Inch) | 1.1969 |
| Head Length (Decimal Inch) | 1 |
| UNSPSC Code | 23153308 |
| Vibration Dampening | No |
| Mount Type | Shank |
| Manufacturers Catalog Number | GH305.1000.600.00.04.R.IK.EST |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 13253448 |
