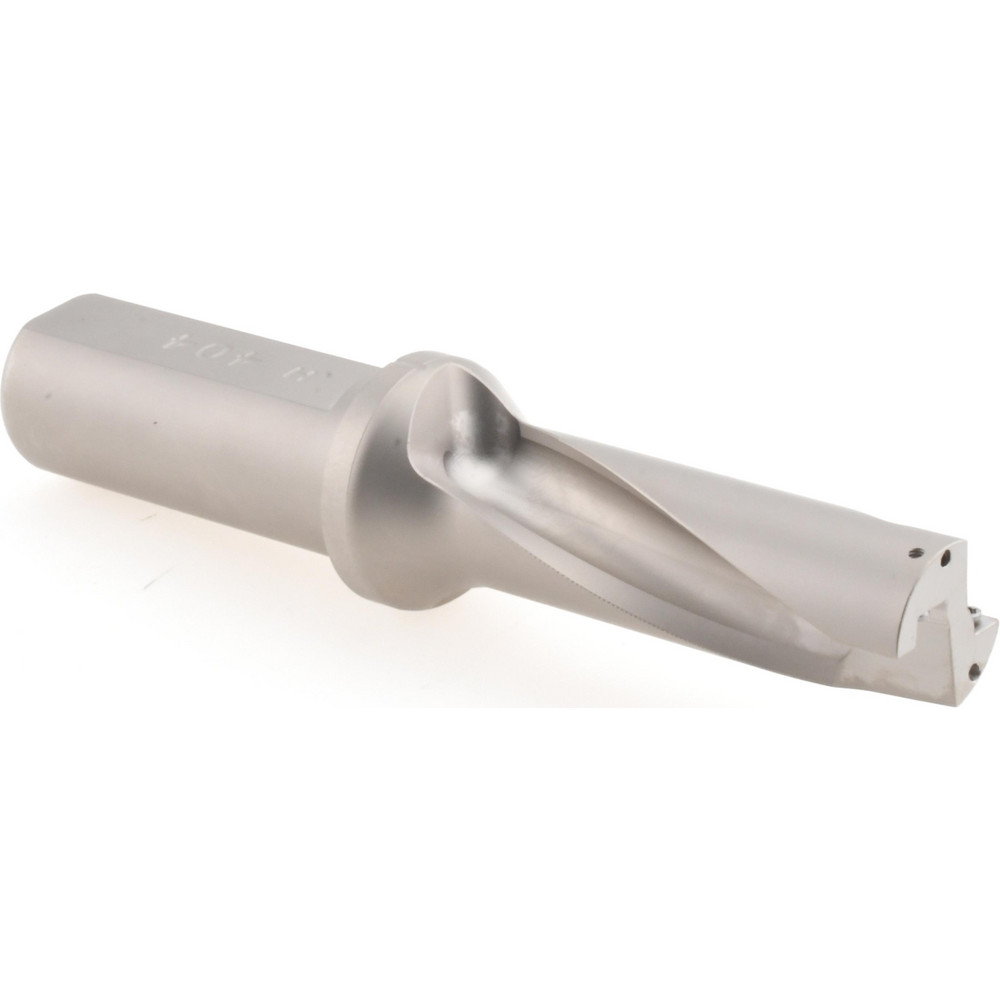

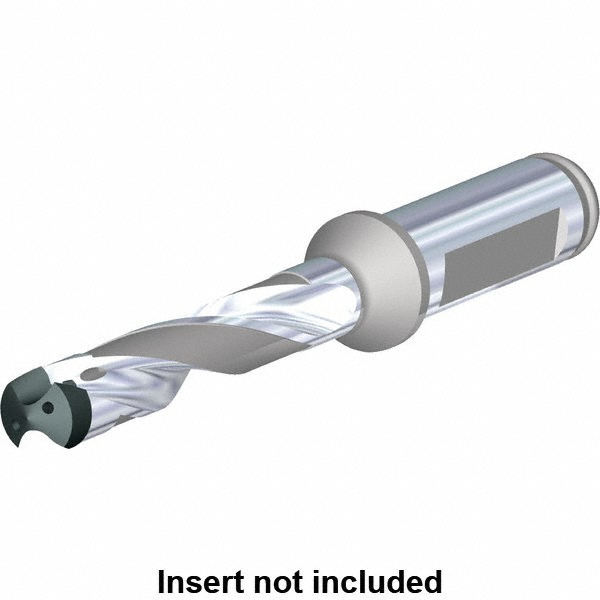

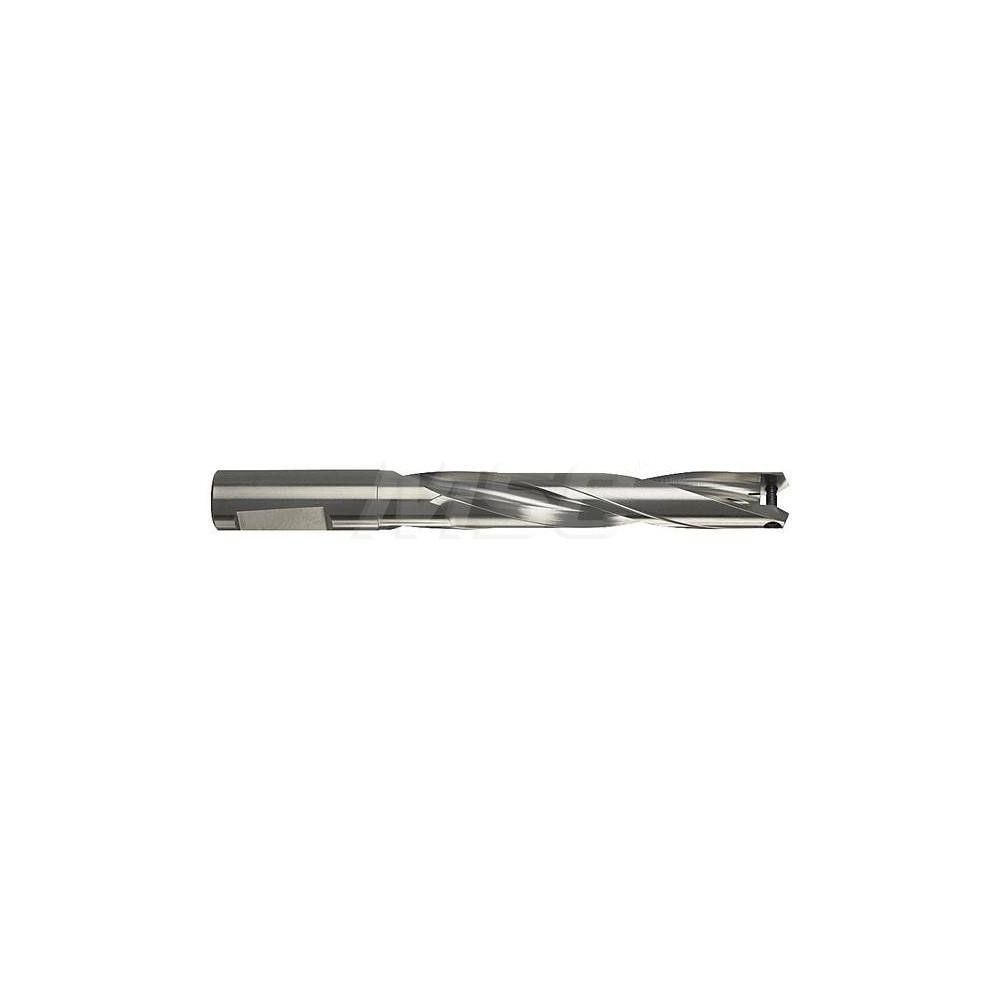

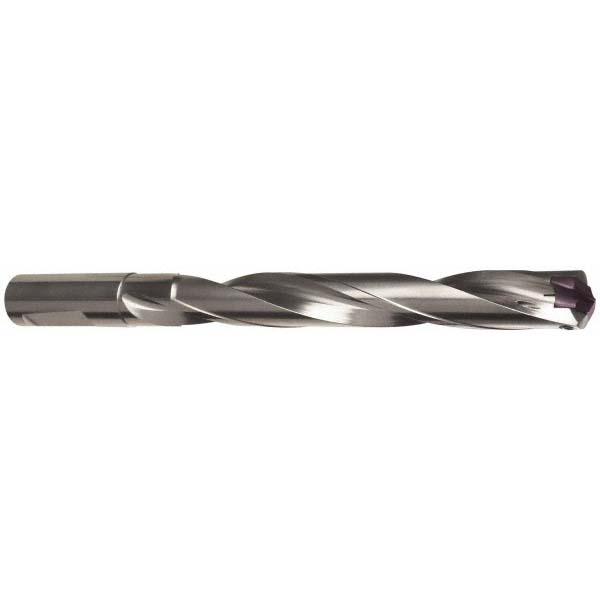

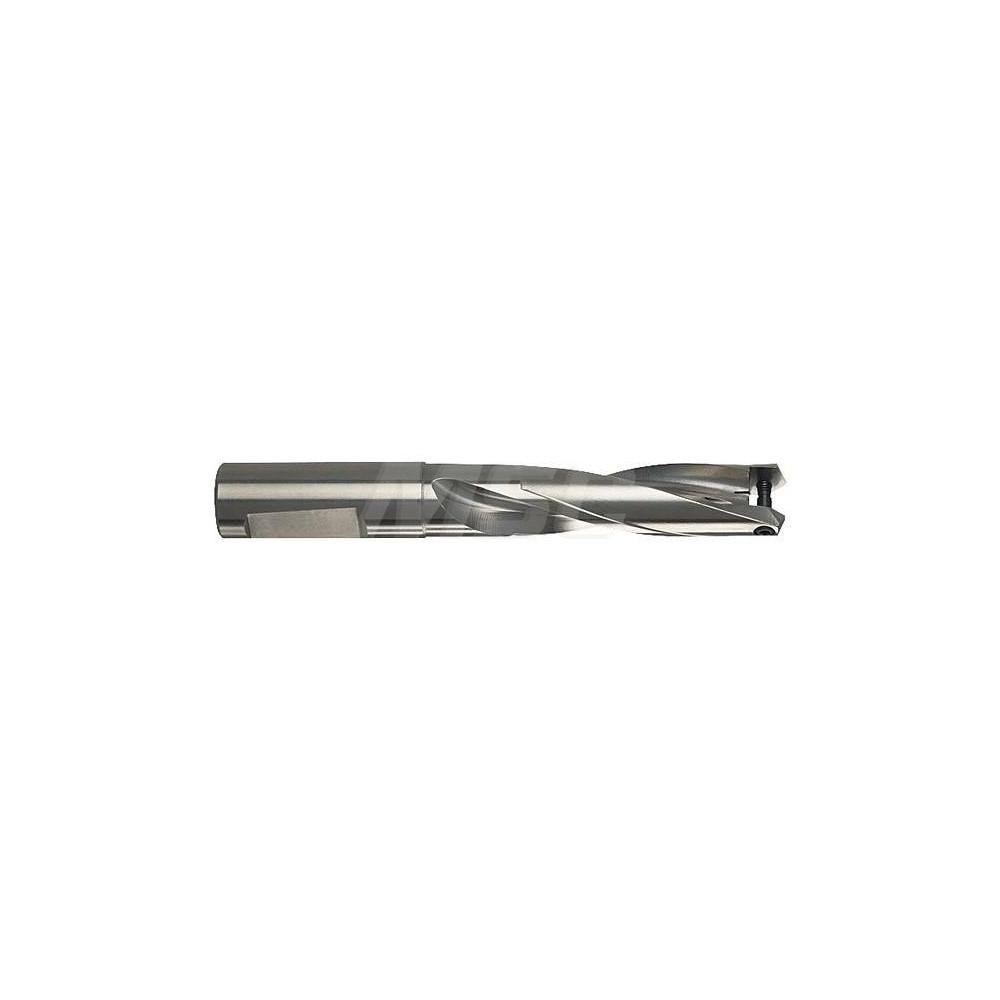

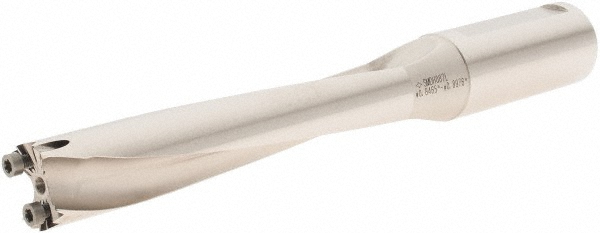

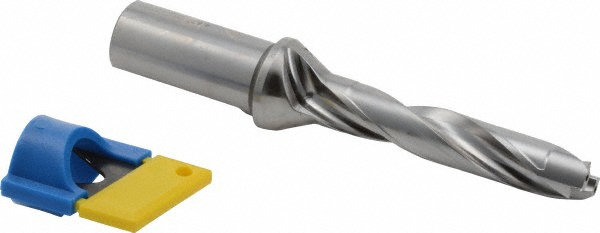

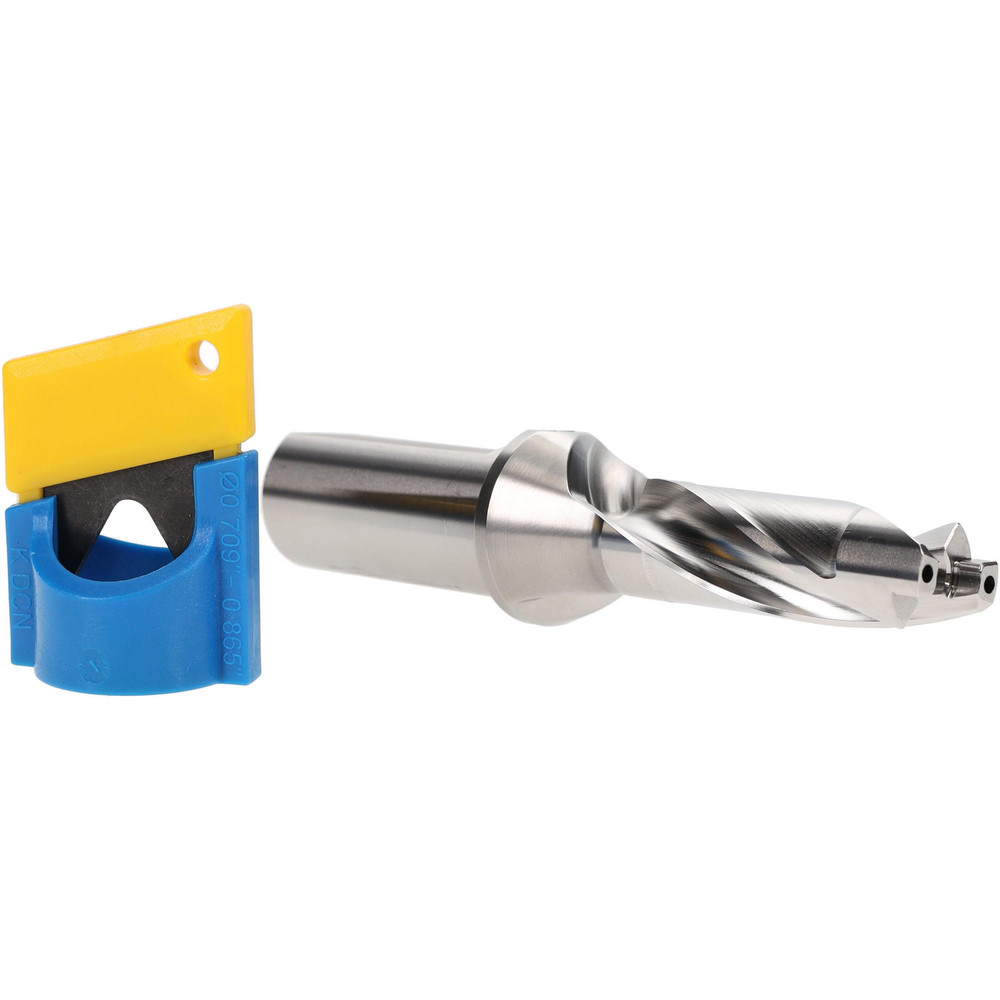

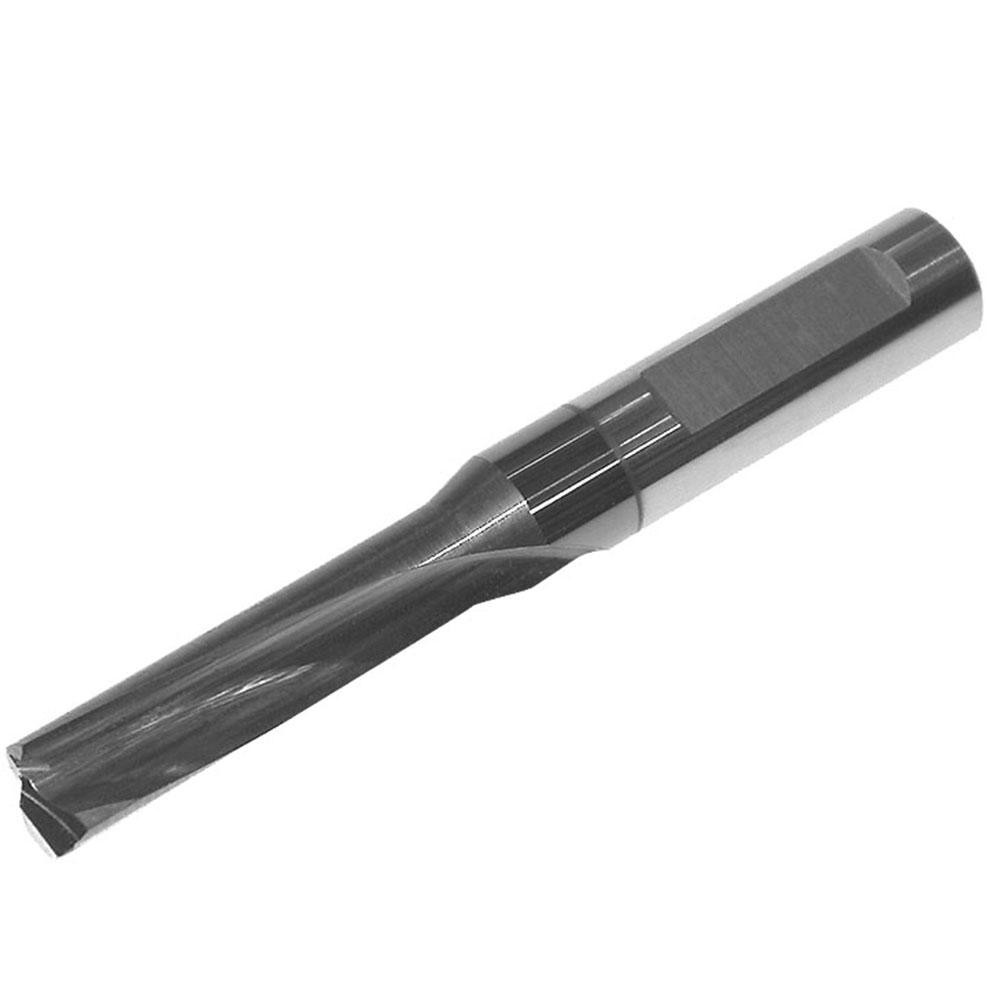

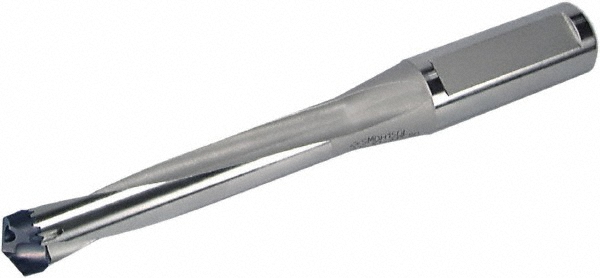

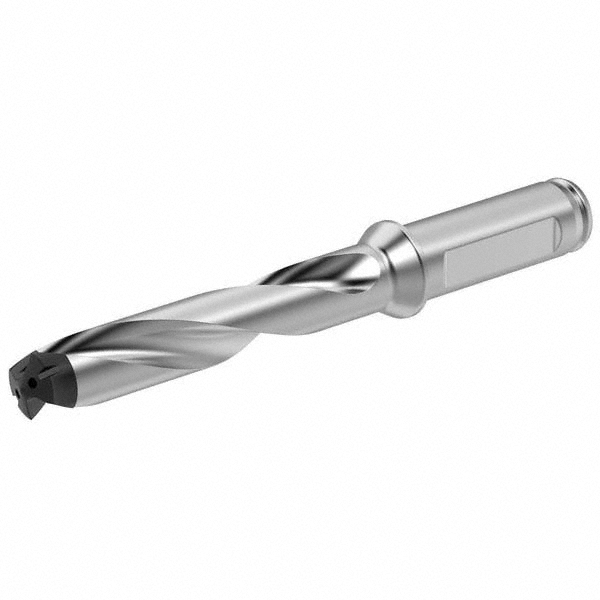

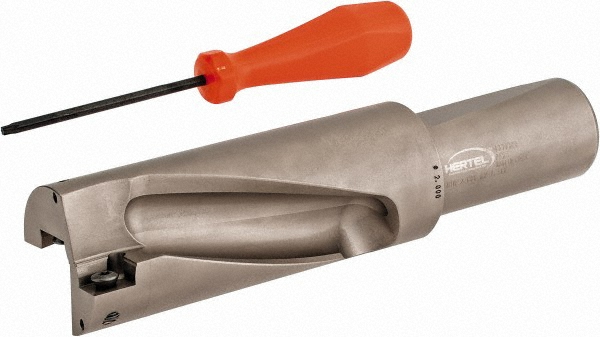

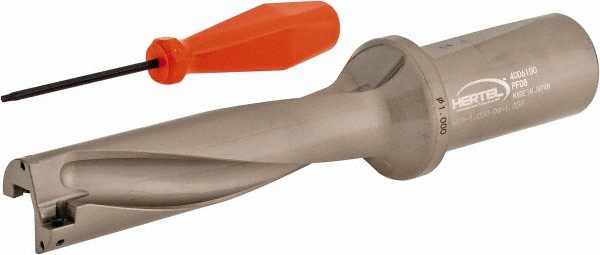

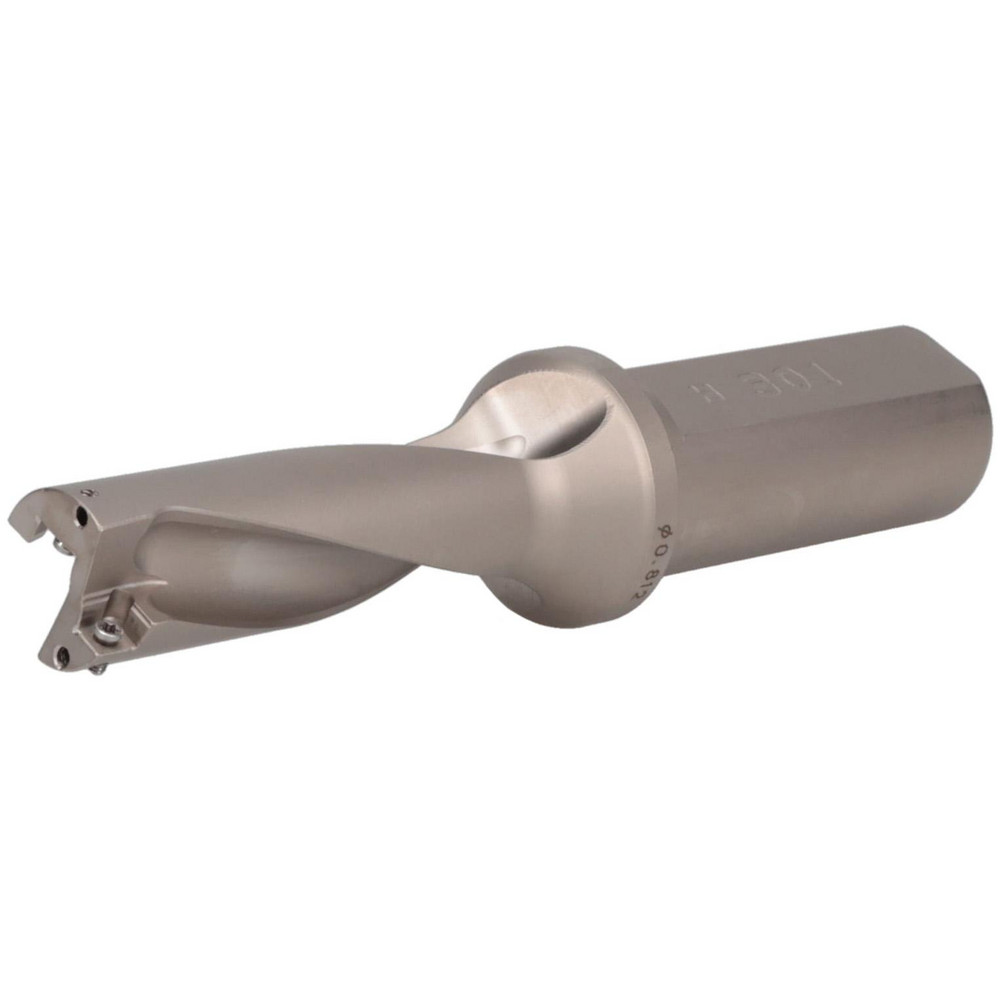

Uses HT 800 WP Inserts, 221 mm OAL, Through Coolant

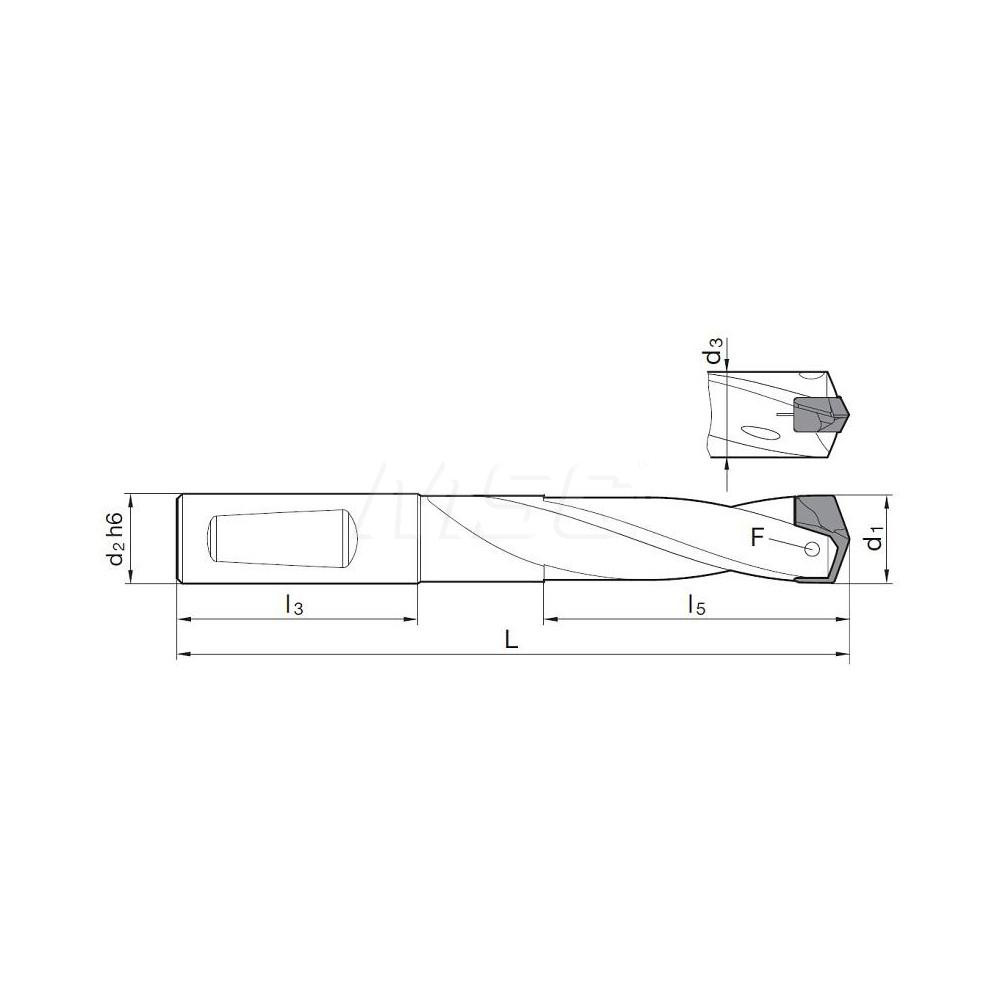

| Minimum Drill Diameter (Decimal Inch) | 0.9250 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9440 |
| Maximum Drill Depth (mm) | 124.50 |
| Maximum Drill Depth (Decimal Inch) | 4.9016 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 125.00 |

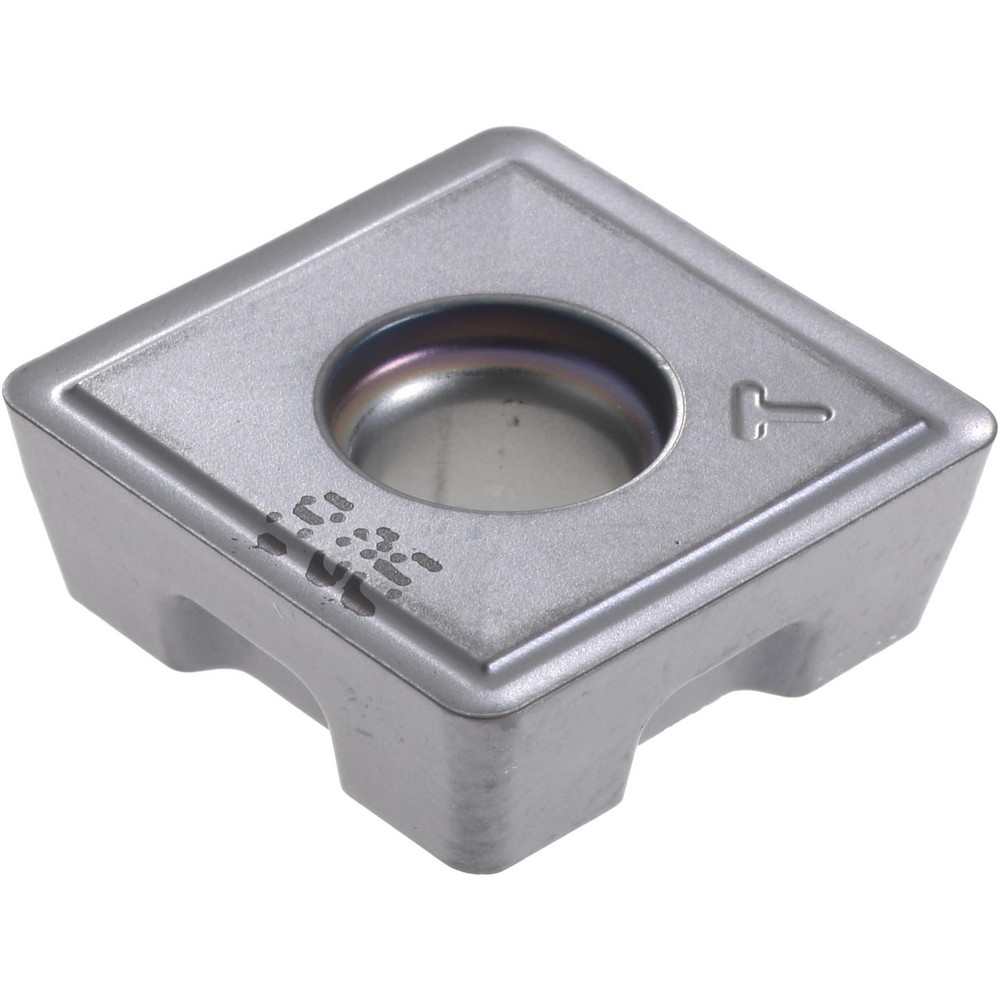

| Compatible Insert Style | HT 800 WP |
| Overall Length (mm) | 221 |
| Overall Length (Decimal Inch) | 8.7008 |
| Series | 4108 |
| Toolholder Style | 5xD HT 800 WP |
| Body Length (Decimal Inch) | 6.4958 |
| Shank Length (Decimal Inch) | 2.2050 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Germany |
