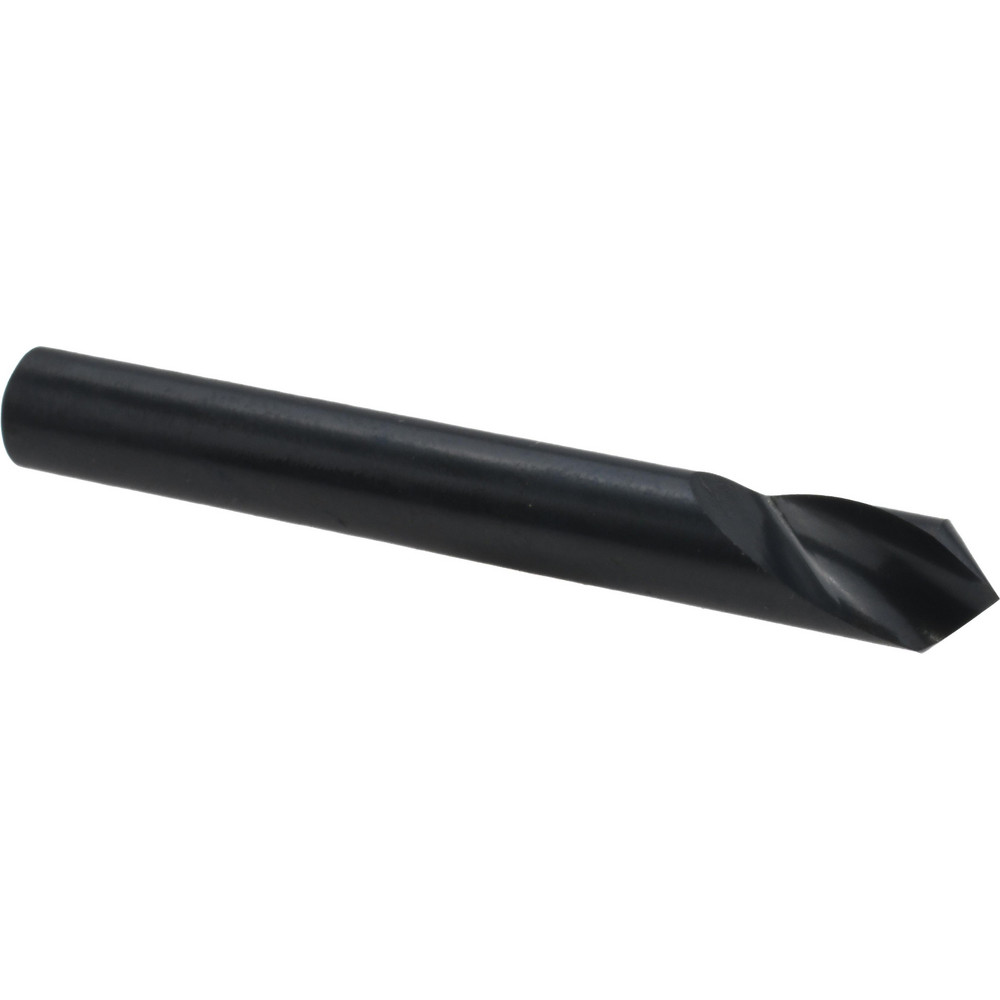

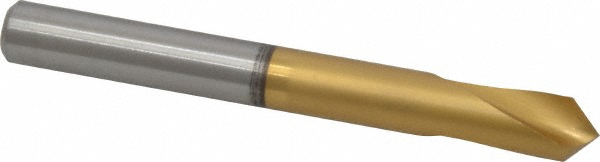

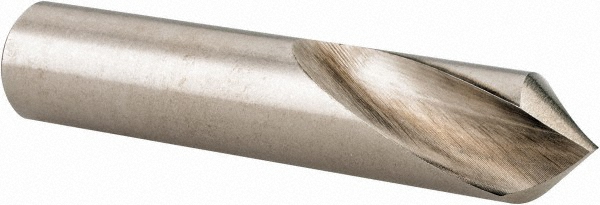

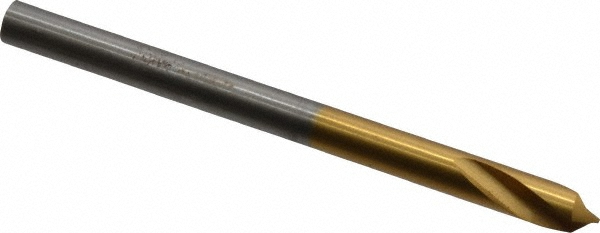

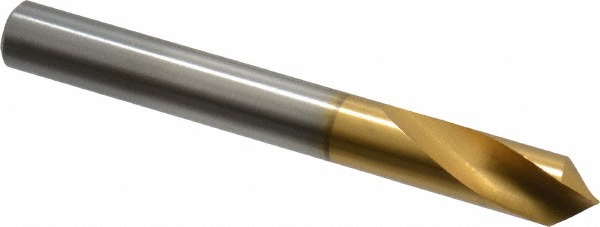

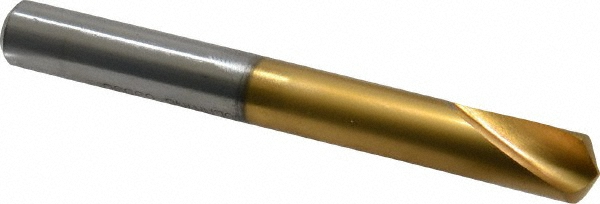

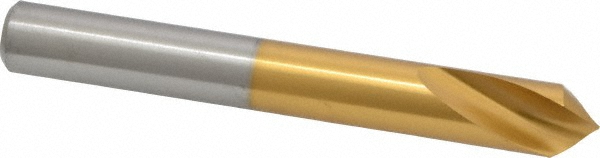

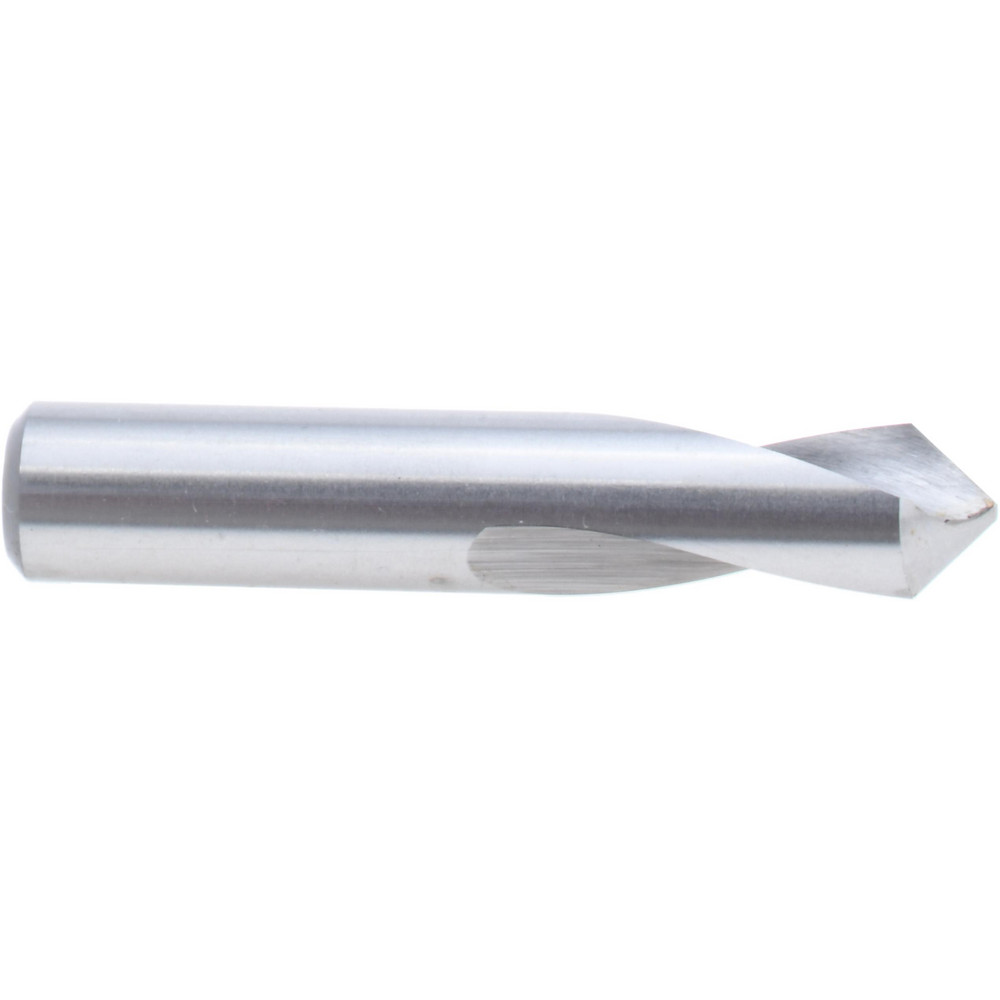

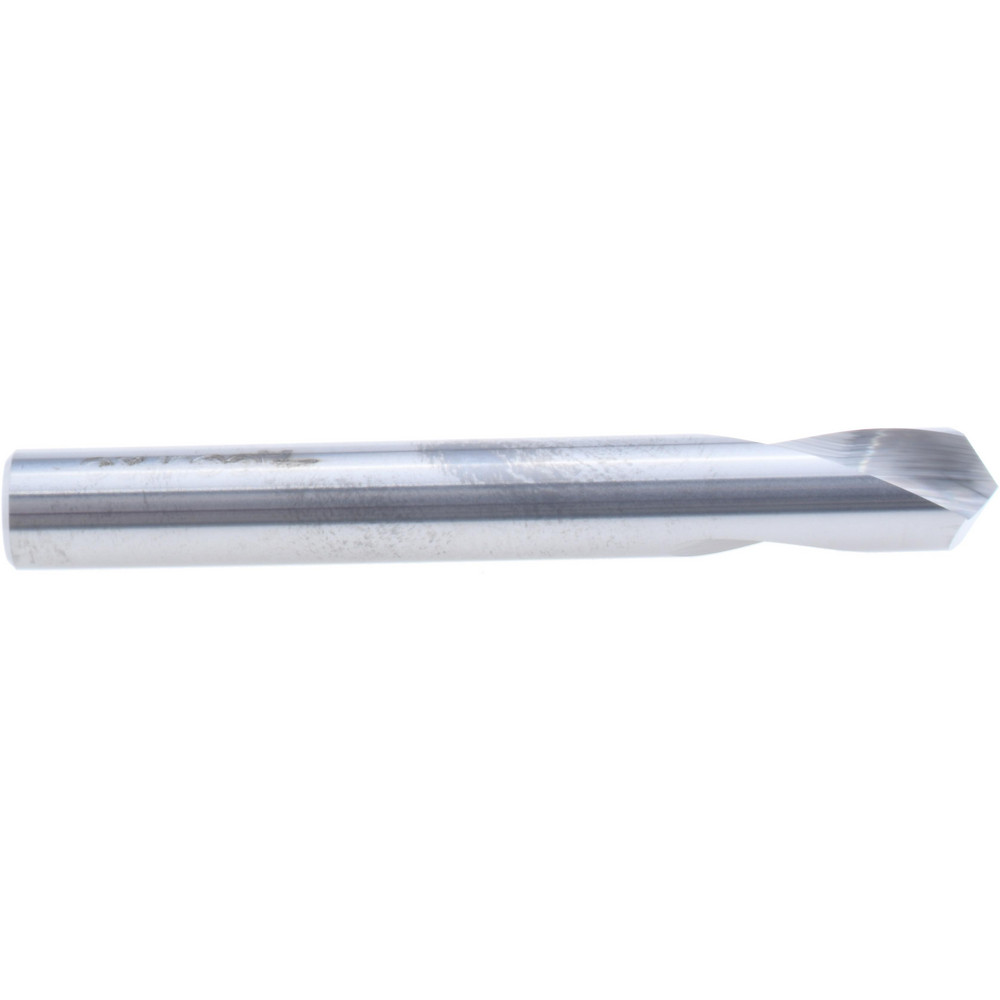

Titanium Nitride Finish, Right Hand Cut, Series 568
| Drill Point Angle | 90 |
|---|---|
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 89 |
| Tool Material | High-Speed Steel |
| Coating/Finish | Titanium Nitride |
| Single/Double Ended | Single |
| Series | 568 |
| Overall Length (Decimal Inch) | 3.5039 |
| Flute Length (Decimal Inch) | 0.9843 |
| Flute Length (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (mm) | 9.53 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23241600 |
| Country of Origin | Germany |
| MSC Number | MSC# 85785244 |
