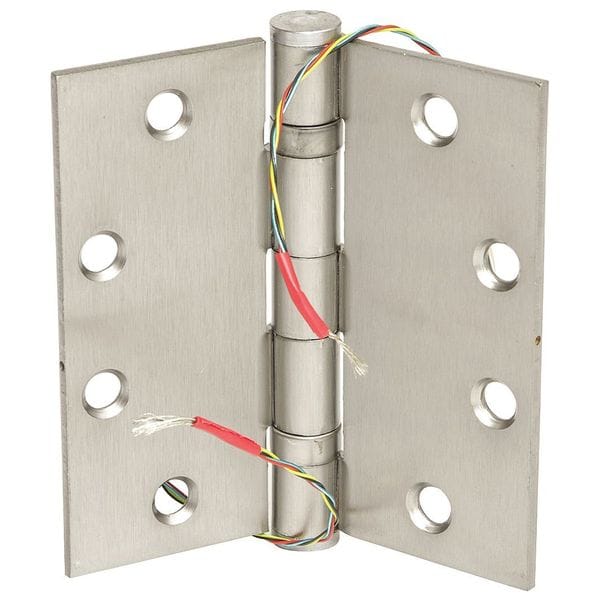

1-25/32" W x 4-1/2" H Satin Chrome Electrified Hinge
| Item | Electrified Hinge |
|---|---|
| Finish | Satin Chrome |
| Material | Brass |
| Features | Electric Through Wire Only - 4 Wires |
| Holes per Leaf | 4 |
| Pin Material | Steel |
| Standards | ANSI A8112 |
| Frame Leaf Width | 1-13/16 in |
| Hardware | Included |
| Frame Leaf Thickness | 0.134 in |
| Bearing Type | Ball |
| Range of Motion | 180 Degrees |
| Required Door Thickness | 1-3/4 in |
| Pin Dia. | 5/8 in |
| Door Leaf Height | 4-1/2 in |
| Door Leaf Width | 1-13/16 in |
| Door Leaf Thickness | 0.134 in |
| Load Capacity | 150 lb |
| Corners | Square |
| Orientation | Non Handed |
| Frame Leaf Height | 4-1/2 in |
| Pin Type | Nonremovable |
| Number of Wires | 4 |
| Mounting | Mortise |
| Ligature Resistant | No |
| Holes | With |
| Overall Width | 4-1/2 in |
| Includes Holes | Holes Included |
| Includes Hardware | Hardware Included |
| Mounting Style | Full Mortise |
| Corner Type | Square |
| Range of Motion - Maximum | 180 Degrees |
| Number of Holes per Leaf | 4 |
| Hinge Type | Butt |
| Pin Diameter | 5/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
